CCI-06033-S15 - Datasheet
MBA
Category Information

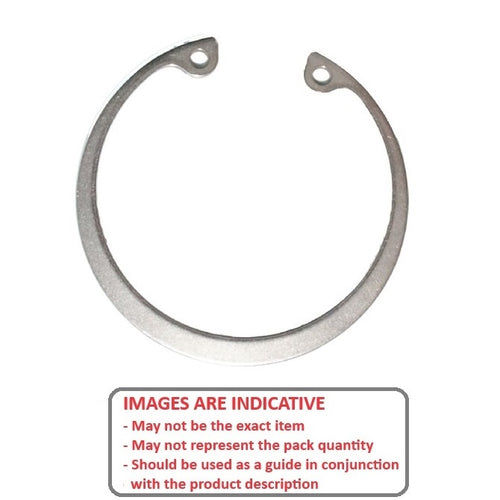

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
60.33
mm
(Equiv. 2.375 in.) - Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.) - Groove Dia. (Dg)
63.93
mm
+ 0.00 / - 0.07
(Equiv. 2.517 in.) - Approx. Loose Circlip OD (Dr) 66.80 mm + 1.02 / - 0.76
- Groove Width (W) 2.18 mm + 0.13 / - 0.00
- Clearance in Bore (C) 48.26 mm
- Clearance in Groove (C1) 51.82 mm
- Min. Lug Diameter (h) 2.31 mm
- Min. Extension (n) 5.41
- Standard MIL-16625
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 91580A249
- NoCor HO-237-SS
- N1300-0237BDS
- N13000237BDS
- HO237SS
