REM-060-R-CB - Datasheet
MBA
Category Information

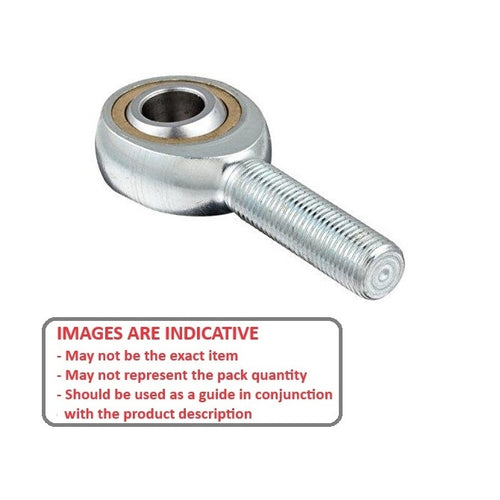

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
6
mm
(Equiv. 0.236 in.) - Overall Length (L)
45.000
mm
(Equiv. 1.772 in.) - Thread Size M6x1.0 Right
- Min. Thread Length (l2) 36.00 mm
- Head Width (W) 6.75 mm
- Eye Width (W1) 9.00 mm
- Head Diameter (D) 18.00 mm
- Centre Height (l1) 36.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GYW6
- EGYW6
