HXNN6-8 - Datasheet

MBA

Category Information

Magnets - Cylinder - Boron

Boron Cylinder Magnets. This is the main category in this series

    Product Data

    • Diameter : 6.00 mm
      (Equiv. 0.236 in.)
    • Length (A) 8.0 mm
      (Equiv. 0.315 in.)
    • Surface Treatment Nickel Plating
    • Attraction Force 15.34 N
    • Heat resistant Temp 60.00 Deg C
    • Material Neodymium Iron Boron
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Misumi HXNN6-8
      • HXNN68
      View full details

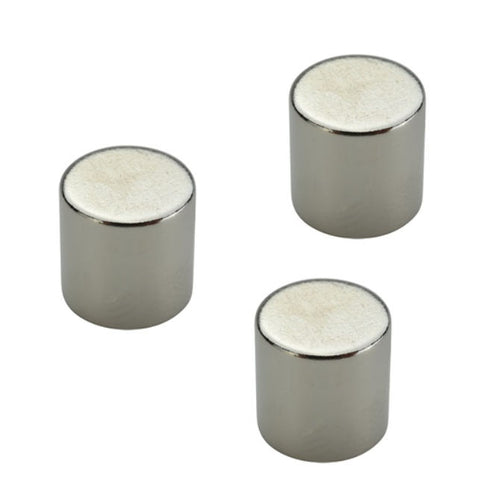

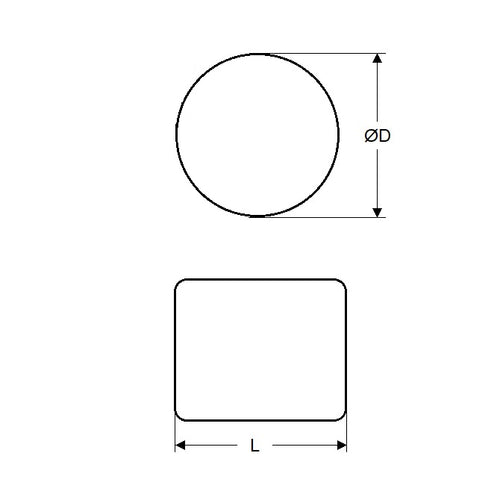

      HXNN6-8DiagramHXNN6-8Image
