K-0600-0600-5000B-C - Datasheet
ExaktKey
Category Information
Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

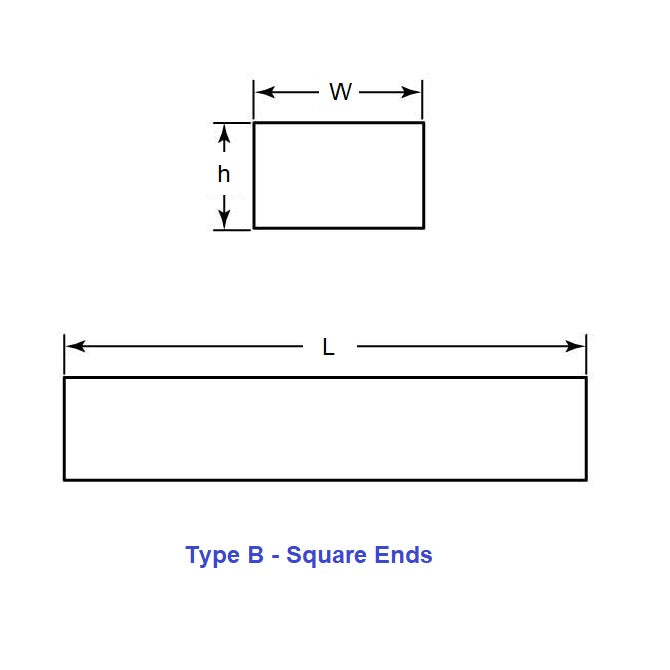

- Width (W)
:
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Height (h)
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Length (L)
50.00
mm
+ / - 0.25
(Equiv. 1.969 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type B (Square Ends)
- Material Carbon Steel C45
