PC064-0381-6 - Datasheet
MBA
Category Information

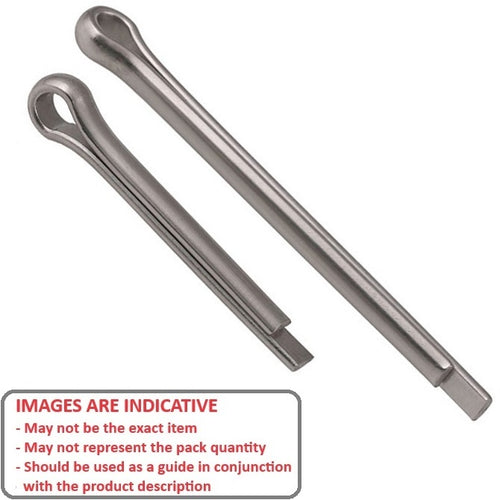

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter
:
6.4
mm
(Equiv. 0.252 in.) - Nom. Pin Length (L)
38.0
mm
(Equiv. 1.496 in.) - Nom. Pin Diameter (D)
5.8
mm
(Equiv. 0.228 in.) - Nom. Overall Length 46 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 98355A290
- NoCor CPS16-250-1500
- CPS162501500
