BB-060-L280 - Datasheet
MBA
Category Information

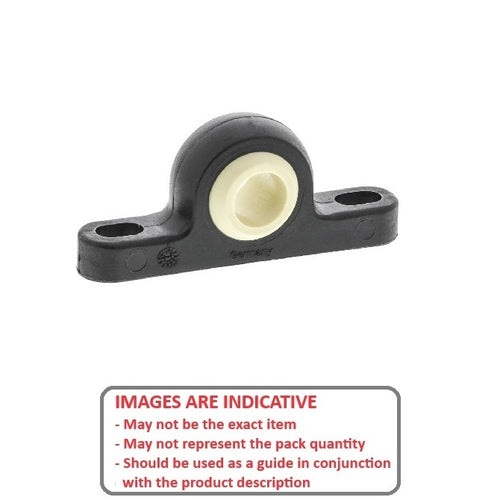

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.
- Maintenance Free, Lightweight, Self-Lubricating.
- Compensates for alignment errors.
- Temperature Range -40 oC to +130 oC.
- Max. Static Tensile Strength is Long Term. Info for Short Term also available.

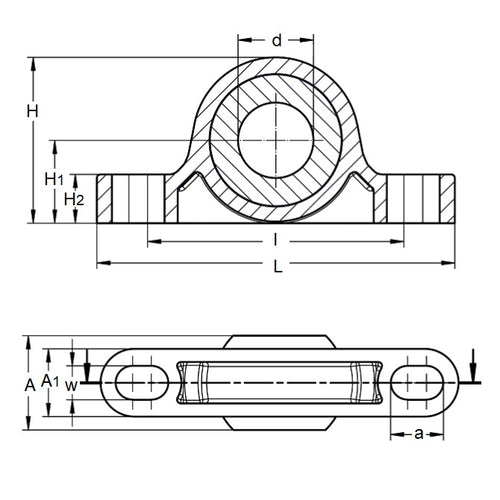

Product Data
- Bore Diameter (d)
:
6.000
mm
(Equiv. 0.236 in.) - Overall Length (L)
43.000
mm
(Equiv. 1.693 in.) - Height (H)
20.000
mm
(Equiv. 0.787 in.) - Width (W) 7.000 mm
- Overall Width (W2) 9.000 mm
- Distance Base to Centre 10.000 mm
- Max. Angle of Pivot 29 °
- Max. Static Tensile Strength 547 N
- Material (Body) Thermoplastic
- Material (Ball) L280 Polymer
Product Compliance and Data
Additional Resources
Cross References
- 6687K32
- Igus KSTM-06
- I-592
- I592
- S61GPBM0609
- KSTM06
