PLBT-035F-079-CS-004 - Datasheet
MBA
Category Information

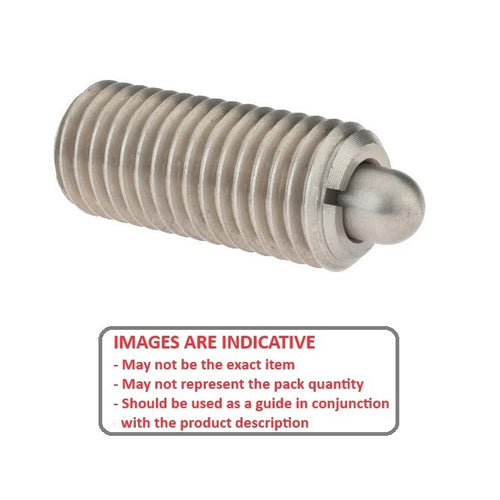

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 6-40 UNF (3.5mm)
- Body Length (L)
7.9
mm
(Equiv. 0.311 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 4.5 N
- Ball Diameter (D1) 2.0 mm
- Ball Height (H) 0.6 mm
- Drive Slotted
- Material Steel Body with Stainless Ball
Product Compliance and Data
Additional Resources
Cross References
- 3408A67
- W25
- W-25
