PLBT-035F-079-S3-020 - Datasheet
MBA
Category Information

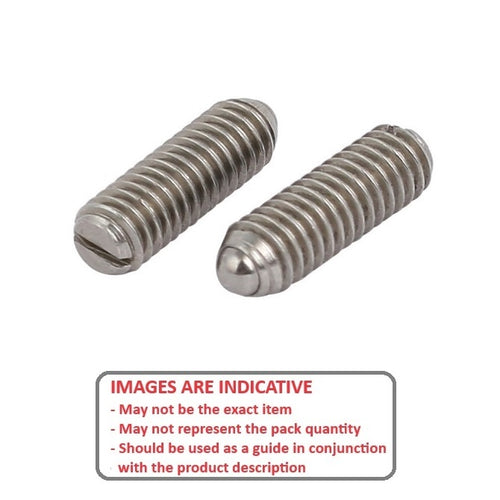

Plungers - Ball Threaded - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 6-40 UNF (3.5mm)
- Body Length (L)
7.9
mm
(Equiv. 0.311 in.) - Initial Pressure (F1) 9.9 N
- Final Pressure (F2) 19.8 N
- Ball Diameter (D1) 2.0 mm
- Ball Height (H) 0.6 mm
- Drive Slotted
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 3408A9
- X3
- X-3
