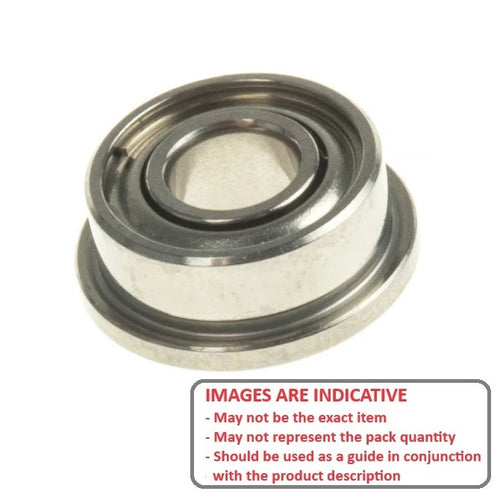

FR168-ZZS-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Chrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Single row radial ball bearings with flanges.
Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

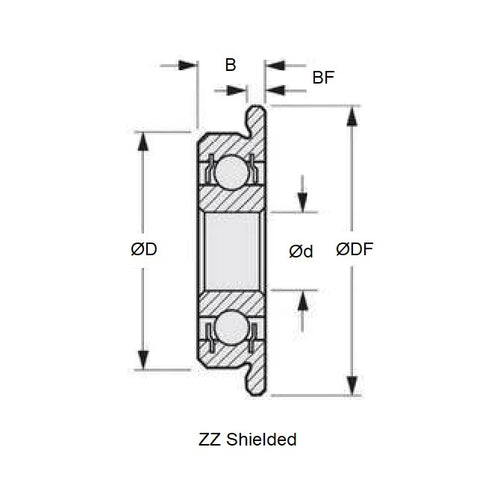

Product Data

ID (d) : 6.350 mm
(Equiv. 0.25 in.)
OD (D) 9.525 mm
(Equiv. 0.375 in.)
Width (B) 3.175 mm
(Equiv. 0.125 in.)
Flange Diameter (DF) 10.719 mm
Flange Width (BF) 0.914 mm
Precision Grade Economy
Closure Type ZZS
Bearing Type Radial Flanged
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part FR168
Limiting Speed 45600
Cage Type Standard
Static Load Rating KGf 17.1
Dynamic Load Rating KGf 36.1
Radii 0.10 mm
Inner Shoulder (UI) 7.08mm
Outer Shoulder (UO) 8.85 mm
Number of Balls 11
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type ZZS
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
Advanced Racing Products - Agitator - Flanged Bearing 6.35-9.53-3.18mm
Advantage Products - Avenger 1/8 Axle Gas - Flanged Bearing 6.35-9.53-3.18mm
Advantage Products - Avenger 3/16 Axle Gas - Flanged Bearing 6.35-9.53-3.18mm
Advantage Products - Custom Street Machine - Flanged Bearing 6.35-9.53-3.18mm
Associated - Bell Crank - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 - TQ10 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Champion Series - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Champion W-Stealth World Car - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Championship Edition - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Championship Edition With STE - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Original Golden Pan - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 Team Car - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10 World Car - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10GT RTR - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10GT RTR With Clutch Bell - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L - RC12L - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L SS - Rear Wheels Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L2 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Oval With Diff Bearing - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Touring Sport - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L3 Touring Team - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10L4 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10LSS - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC10LW - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12 Series - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L3 Oval - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L4 - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12L4 Upgrade Option - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12LC - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC12LSS - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC500 Gas - Flanged Bearing 6.35-9.53-3.18mm
Associated - RC500 Gas 4WD - Flanged Bearing 6.35-9.53-3.18mm
Associated - Team Car - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Digger - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 10 - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 10 -12 -Sport - Invader - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 12 - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator 12-CF - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator Gold - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Eliminator Gold - LTO - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Funny Car Nitro - Rear Wheels Flanged Bearing
Bolink - Hotrod - Rear Wheels Flanged Bearing
Bolink - Invader - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Invader Off-Road - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Invader Truck - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Legend - Flanged Bearing 6.35-9.53-3.18mm
Bolink - LTO - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Nitro Rail Dragster - Flanged Bearing 6.35-9.53-3.18mm
Bolink - Sport - Flanged Bearing 6.35-9.53-3.18mm
Cobra - Nemesis - Flanged Bearing 6.35-9.53-3.18mm
Composite Craft - Lynx Super Speedway 1/8 Front Axle - Flanged Bearing 6.35-9.53-3.18mm
Composite Craft - Lynx Super Speedway 3-16 Front Axle - Flanged Bearing 6.35-9.53-3.18mm
Composite Craft - Predator - Flanged Bearing 6.35-9.53-3.18mm
Cox - Bandito - Ultra Stock - Flanged Bearing 6.35-9.53-3.18mm
Cox - GTP Gas - Flanged Bearing 6.35-9.53-3.18mm
Cox - Nissan .049 - Flanged Bearing 6.35-9.53-3.18mm
CRC Calandra Racing Concepts - 3 - Flanged Bearing 6.35-9.53-3.18mm
CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Flanged Bearing 6.35-9.53-3.18mm
Delta - P2 1/8 Gas - Flanged Bearing 6.35-9.53-3.18mm
Delta - P4 1/8 Gas - Flanged Bearing 6.35-9.53-3.18mm
Delta - Villain Cross - Flanged Bearing 6.35-9.53-3.18mm
Delta - Villain IFS - Flanged Bearing 6.35-9.53-3.18mm
Duratrax - GT10 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - 510 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - 510 Upgrade - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Hyper-10 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Hyper-10 Sport - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - Pan Scale1/10 - Flanged Bearing 6.35-9.53-3.18mm
Hyperdrive - STX - Flanged Bearing 6.35-9.53-3.18mm
Losi - NXT - Flanged Bearing 6.35-9.53-3.18mm
Losi - XXX4 - Flanged Bearing 6.35-9.53-3.18mm
Losi - XXX-NT Sport - Flanged Bearing 6.35-9.53-3.18mm
McAllister - Outlaw - Flanged Bearing 6.35-9.53-3.18mm
Parma - California Sports Truck - Flanged Bearing 6.35-9.53-3.18mm
Parma - Pro Panther - Flanged Bearing 6.35-9.53-3.18mm
Parma - Pro Panther - California Sports Truck - Flanged Bearing 6.35-9.53-3.18mm
Racetech - Carpet Pro - Flanged Bearing 6.35-9.53-3.18mm
Racetech - G Force - Flanged Bearing 6.35-9.53-3.18mm
TRC - Pro 10 1/8 Axle - Flanged Bearing 6.35-9.53-3.18mm
TRC - Pro 10 3-16 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Black Widow - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Evolution 10 3-16 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Evolution 10 LSS - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Evolution 10 LSS Revolver 12 1/8 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Reflex 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Reflex 12 Oval - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Revolver 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Spec Car - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 1/8 Axle - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 12 - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 12 SJ - Flanged Bearing 6.35-9.53-3.18mm
Trinity - Switchblade 2 - Flanged Bearing 6.35-9.53-3.18mm
Yokomo - YRX-12WE - Flanged Bearing 6.35-9.53-3.18mm

Cross References

Bolink BL-5452
Shielded FR168 / 3
BL5452
FR168 Basic Size Ref
