W0064-F-010-0040-S3 - Datasheet

MBA

Category Information

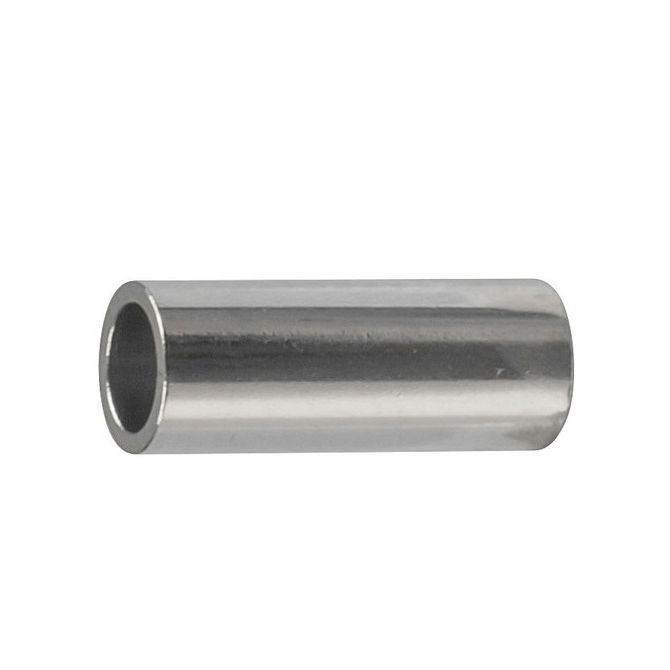

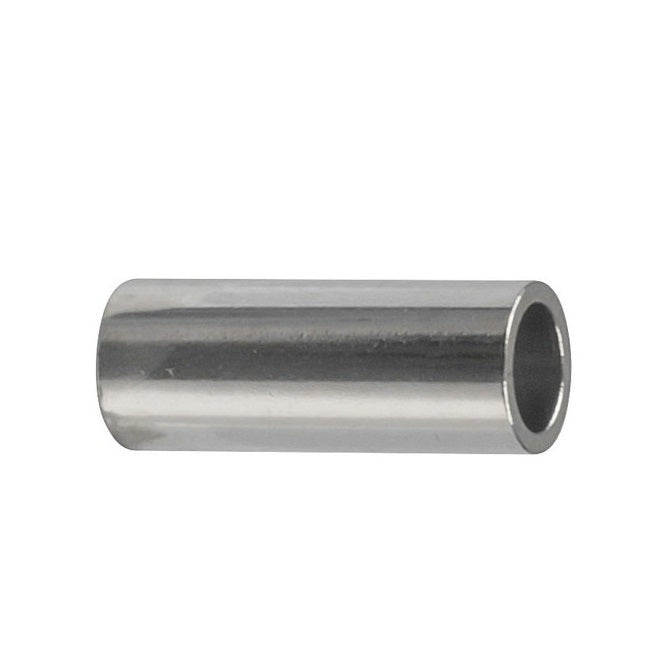

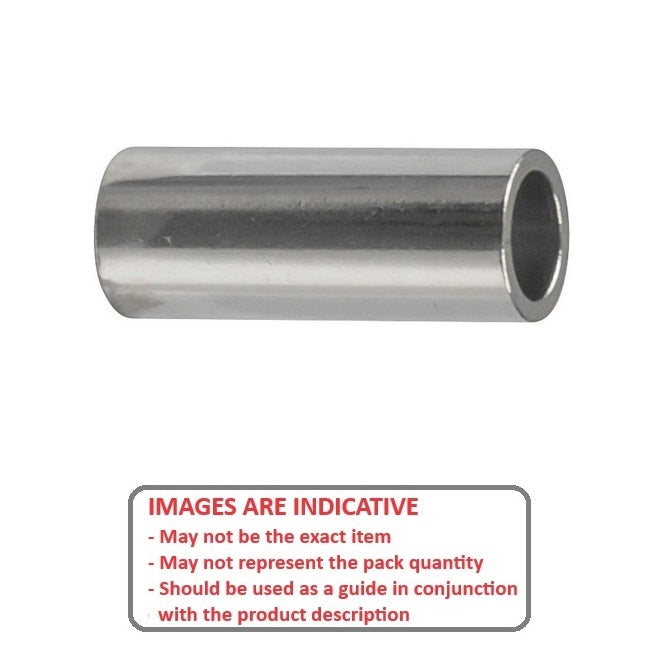

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • ID (d) : 6.35 mm + 0.1 / - 0.0
    (Equiv. 0.25 in.)
  • OD (D) 9.525 mm
    (Equiv. 0.375 in.)
  • Length (L) 0.4 mm + /- 0.031
    (Equiv. 0.016 in.)
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • A7X8-C08016
  • A7X8C08016
View full details

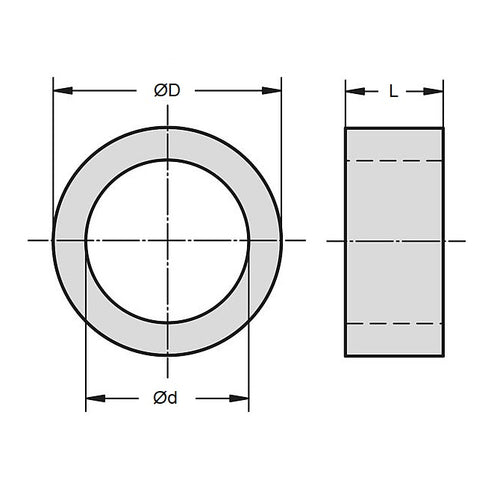

W0064-F-010-0040-S3DiagramW0064-F-010-0040-S3Image
