CCI-00635-CZY - Datasheet
MBA
Category Information

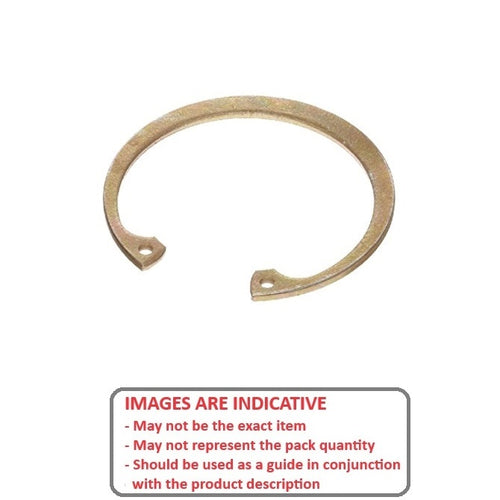

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
6.35
mm
(Equiv. 0.25 in.) - Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.) - Groove Dia. (Dg)
6.81
mm
+ 0.00 / - 0.05
(Equiv. 0.268 in.) - Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
- Groove Width (W) 0.51 mm + 0.05 / - 0.00
- Clearance in Bore (C) 2.79 mm
- Clearance in Groove (C1) 3.30 mm
- Min. Lug Diameter (h) 0.74 mm
- Min. Extension (n) 0.69
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
