K-0635-0635-5080B-3 - Datasheet
ExaktKey
Category Information

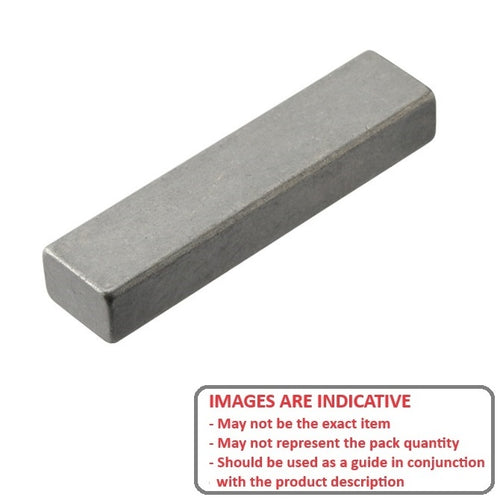

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

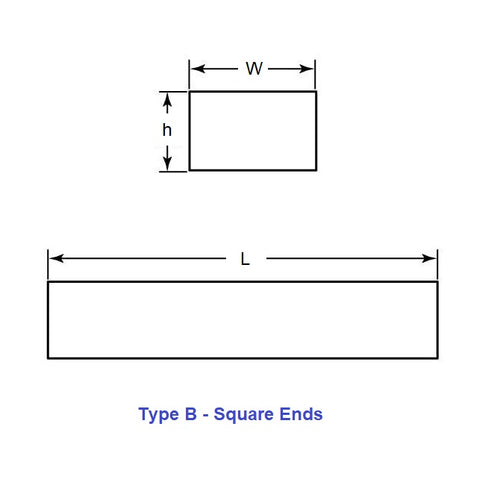

- Width (W)
:
6.35
mm
+ 0 / - 0.051
(Equiv. 0.25 in.) - Height (h)
6.35
mm
+ 0 / - 0.051
(Equiv. 0.25 in.) - Length (L)
50.80
mm
+ / - 0.25
(Equiv. 2 in.) - Tolerance Type Standard Undersized
- End Type B (Square Ends)
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 7002500250-2000
- 92624A245
- 70025002502000
