LYP-Q2-064-057-S4 - Datasheet
MBA
Category Information

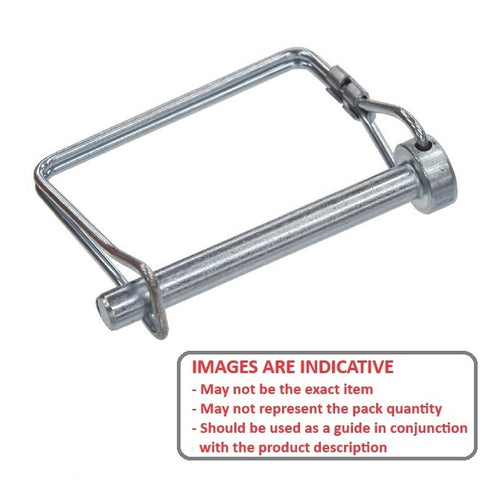

Pins - Wire Lock Lynch - Double Wire - Square - Stainless SteelStainless Steel Square Double Wire Wire Lock Lynch Pins. Also known as 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins
- Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pin Diameter (A)
:
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.) - Grip Length (C)
57.15
mm
+ 0.00 / - 6.35
(Equiv. 2.25 in.) - Wire Thickness (T) 2.3 mm
- Clearance To Wire (E) 41.3 mm
- Pin Length (B) 63.5 mm
- Weight Per Piece 39 g
- Finish Passivated
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SNAPS-250-2250S
- NoCor® SNAPS-250-2250S
- SNAPS2502250S
