LYP-T1-064-051-CZ - Datasheet
MBA
Category Information

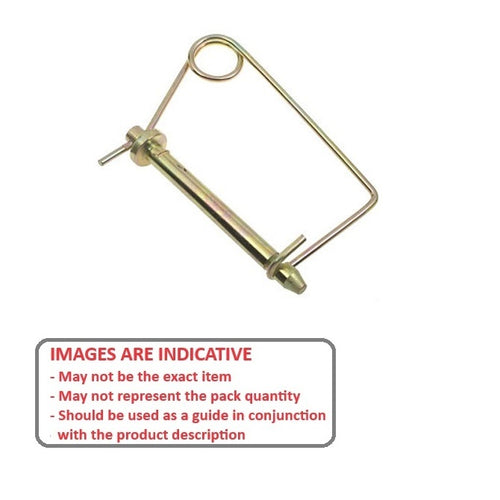

Pins - Wire Lock Lynch - Single Wire - Trapezoid Carbon SteelTrapezoid Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins
- Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
Product Data

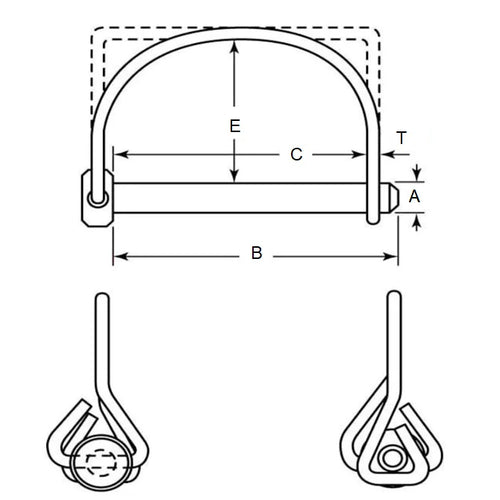

- Pin Diameter (A)
:
6.35
mm
- 0.051 / - 0.178
(Equiv. 0.25 in.) - Grip Length (C)
50.80
mm
+ 0.00 / - 6.35
(Equiv. 2 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- WMG-115
- WMG115
