JLP-85RS - Datasheet
MBA
Category Information

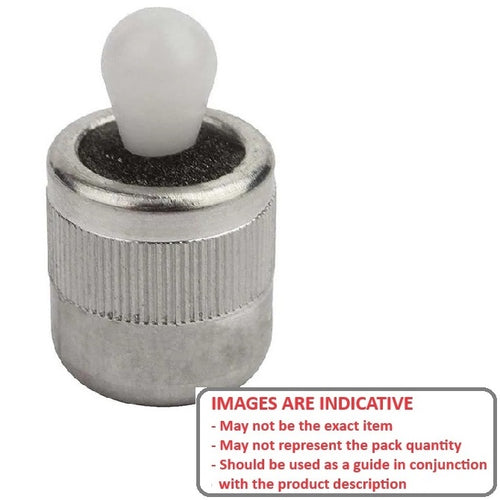

Pins - Locating Spring - Plastic Pin - SealedSealed Plastic Pin Locating Spring Pins. Aluminium Body. For fixturing small parts in tight areas. Ideal for positioning and chucking flat or round parts for profile clamping.

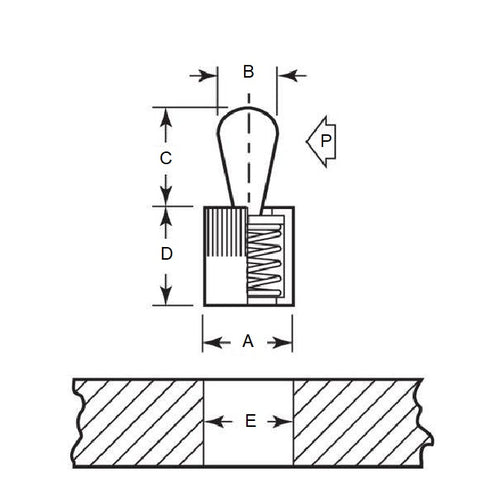

Product Data
- Diameter (A) : 6.35 mm
- Pin Diameter (B) 3.00 mm
- Pin Height (C) 4.01 mm
- D 7.01 mm
- E 6.35 mm + 0.025 / - 0.000
- P Force 2.04 Kg
- X 0.89 mm
- Installation Tool JLP-400
- Material Plastic
