HPE-064-16-017-C - Datasheet
ENQUIRE
Category Information

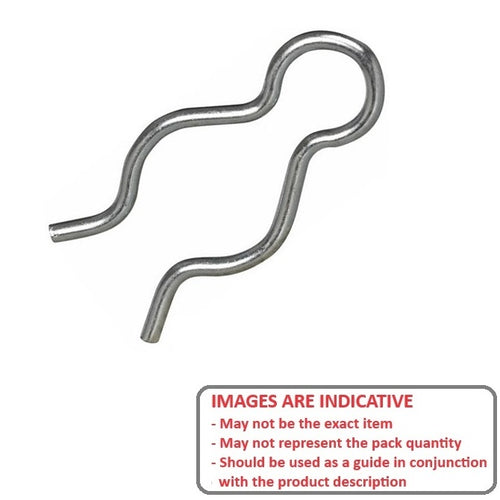

Pins - Hitch ExternalHitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Recommended Groove Diameter : 6.35 mm
- Rec. Groove Width 2.0 mm

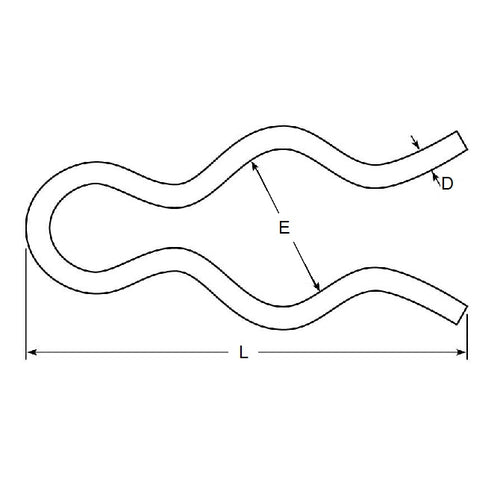

- Wire Thickness (D) 1.6 mm
- Inside Eye Diameter (E) 4.8 mm
- Length (L) 17.5 mm
- Material Spring Wire or Oil-Tempered
Product Compliance and Data
Additional Resources
Cross References
- A9Q34-X3
- A9Q34X3
