CLP-064-0284-CZ - Datasheet

MBA

Category Information

Pins - Clevis - Pin Locking - Zinc Plated

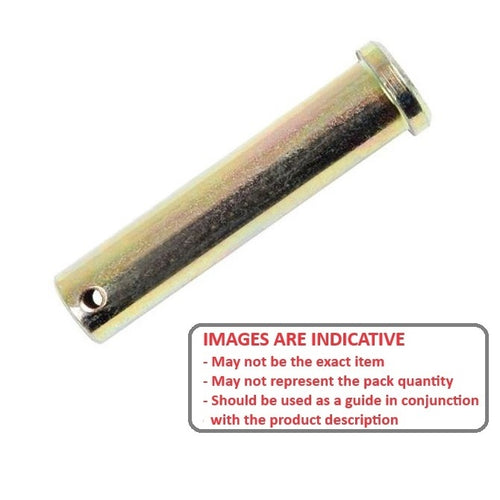

Zinc Plated Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings

  • Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
  • A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
  • In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
  • Sinc plated low carbon steel

Product Data

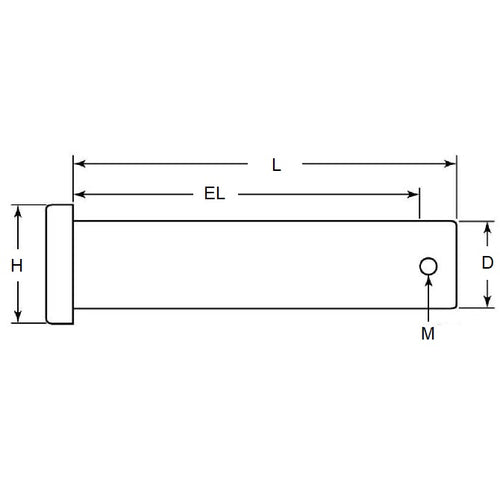

  • Nominal Pin Diameter (D) : 6.35 mm - 0.05 / - 0.18
    (Equiv. 0.25 in.)
  • Grip Length (EL) 28.37 mm + 0.51 / - 0.00
    (Equiv. 1.117 in.)
  • Nom. Length (L) 31.75 mm + 0.51 / - 0.00
    (Equiv. 1.25 in.)
  • Ret. Pin Dia. (M) 2.4 mm
  • Suitable R-Clip RCL-020-057-Z
  • Material Zinc Plated Low Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor CLPZ-0250-1250/B
  • NoCor CLPZ-0250-1250-B
  • CLP0640284Z
  • CLPZ02501250B
  • CLPZ02501250/B
