Miniature Bearings Australia
SFR4-MC3 - Datasheet
MBA
Category Information

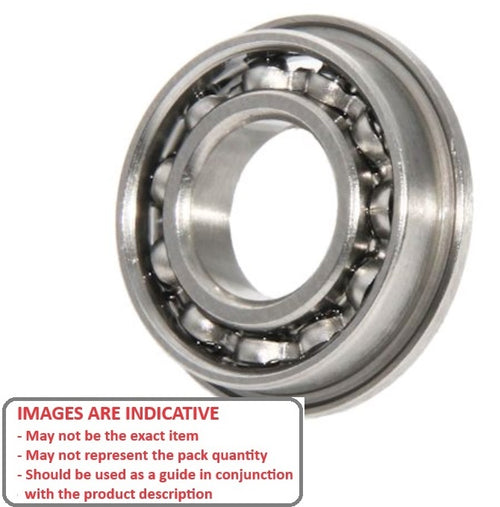

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

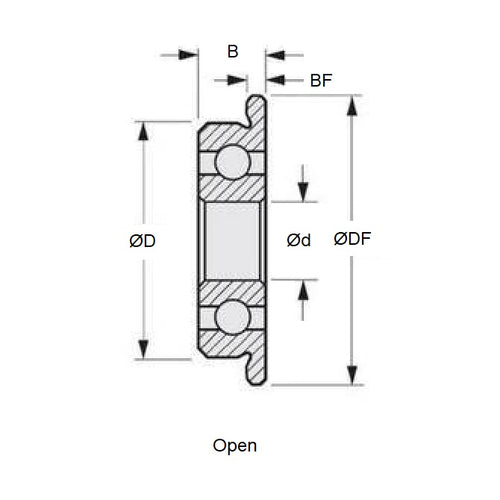

- ID (d)
:
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.) - OD (D)
15.875
mm
+ 0.000 / - 0.0075
(Equiv. 0.625 in.) - Width (B)
4.978
mm
+ 0.000 / - 0.125
(Equiv. 0.196 in.) - Flange Diameter (DF) 17.526 mm
- Flange Width (BF) 1.067 mm
- Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR4
- Limiting Speed 38000
- Cage Type Standard
- Static Load Rating KGf 63
- Dynamic Load Rating KGf 151
- Radii 0.30 mm
- Inner Shoulder (UI) 9.35mm
- Outer Shoulder (UO) 12.85 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K305
- NTN FLWR4
- Similar Part FLWR4
- GRW SFBR1-4A
- MPB SR4FC
- MPB SR4FR
- GRW SSFBR1-4A
- NHBB SSFR4
- MPB SSR4FC
- MPB SSR4FR
- ADR WFY1-4
- Similar Part WFY1-4
- SS-RF-4
- SSRF4
- SSRF-4
- DD-RF-4
- DDRF-4
- DDRF4
- SFBR14A
- WFY14
- SSFBR14A
- RK8020X
- FR4 Basic Size Ref
