Miniature Bearings Australia

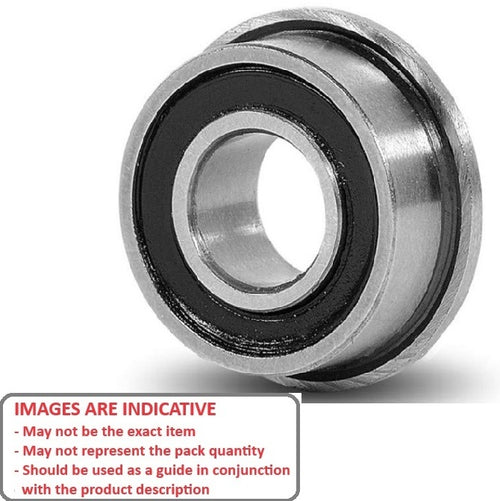

SFR4-2RS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

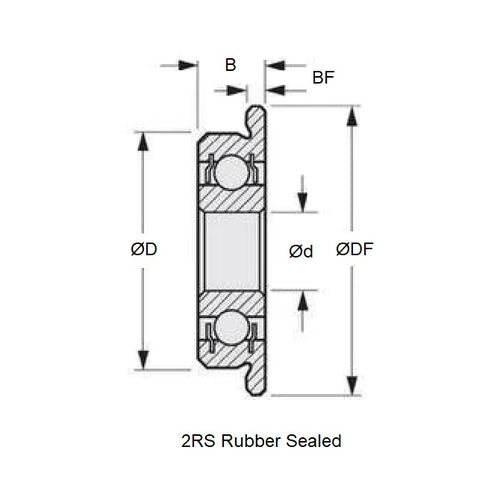

- ID (d)
:
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.) - OD (D)
15.875
mm
+ 0.000 / - 0.0075
(Equiv. 0.625 in.) - Width (B)
4.978
mm
+ 0.000 / - 0.125
(Equiv. 0.196 in.) - Flange Diameter (DF) 17.526 mm
- Flange Width (BF) 1.067 mm
- Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR4
- Limiting Speed 25840
- Cage Type Ribbon
- Static Load Rating KGf 63
- Dynamic Load Rating KGf 151
- Radii 0.30 mm
- Inner Shoulder (UI) 9.350mm
- Outer Shoulder (UO) 12.850 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- FAFNIR AFS1KPP7
- Stainless FR42RSMC3
- Stainless FR4-2RS-MC3
- Stainless FR4RSMC3
- Stainless FR4-RS-MC3
- Similar Part SFR4
- Sealed SFR4 / 5
- Nachi SFR4-2RS
- Nachi SFR4-RS
- Similar Part SSFR4
- Sealed SSFR4 / 5
- Nachi SSFR4-2RS
- Nachi SSFR4-RS
- SFR4RSMC3
- SFR42RS
- SFR4-RSMC3
- SFR4-2RSMC3
- SFR42RSMC3
- SSFR4-RSMC3
- SSFR4-2RSMC3
- SSFR4RSMC3
- SSFR42RS
- SSFR42RSMC3
- FR4 Basic Size Ref
