Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

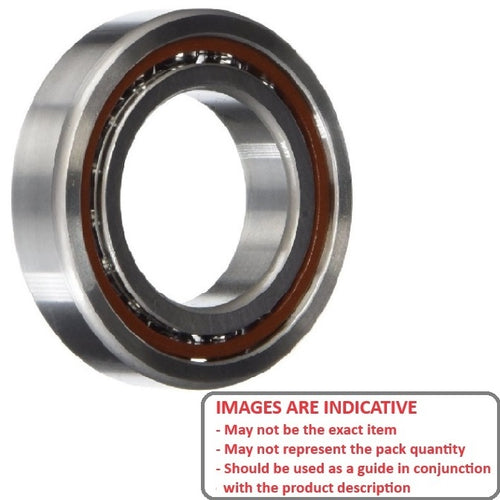

High speed polyamide cage. Ceramic balls.

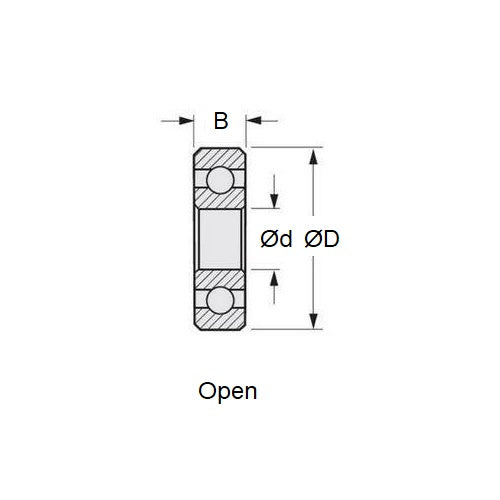

- ID (d)
:
6.350
mm
(Equiv. 0.25 in.) - OD (D)
15.875
mm
(Equiv. 0.625 in.) - Width (B)
4.978
mm
(Equiv. 0.196 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Oil
- Lubrication Name ACO Anti Corrosion Oil Film
- Basic Part R4
- Limiting Speed 68400
- Cage Type Polyamide
- Static Load Rating KGf 47.9
- Dynamic Load Rating KGf 114.8
- Radii 0.30 mm
- Inner Shoulder (UI) 8.40mm
- Outer Shoulder (UO) 13.55 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
