SFR188A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Single row radial ball bearings with flanges.
Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

ID (d) : 6.350 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.25 in.)
OD (D) 12.700 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.5 in.)
Width (B) 4.762 mm _{+ 0.000 / - 0.125}
(Equiv. 0.187 in.)
Flange Diameter (DF) 13.894 mm
Flange Width (BF) 1.143 mm
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial Flanged
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part FR188A
Limiting Speed 40000
Cage Type Ribbon
Static Load Rating KGf 45
Dynamic Load Rating KGf 110
Radii 0.15 mm
Inner Shoulder (UI) 7.40mm
Outer Shoulder (UO) 11.60 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

View full details

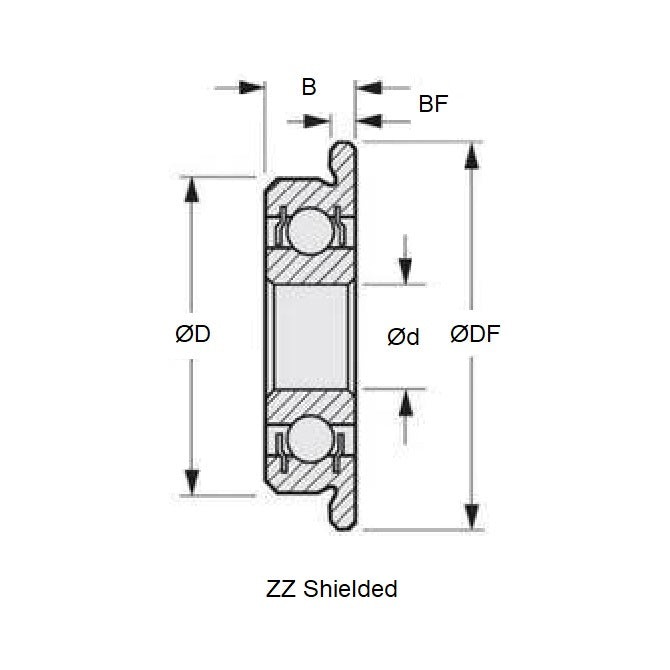

SFR188A-ZZ-MC3Diagram

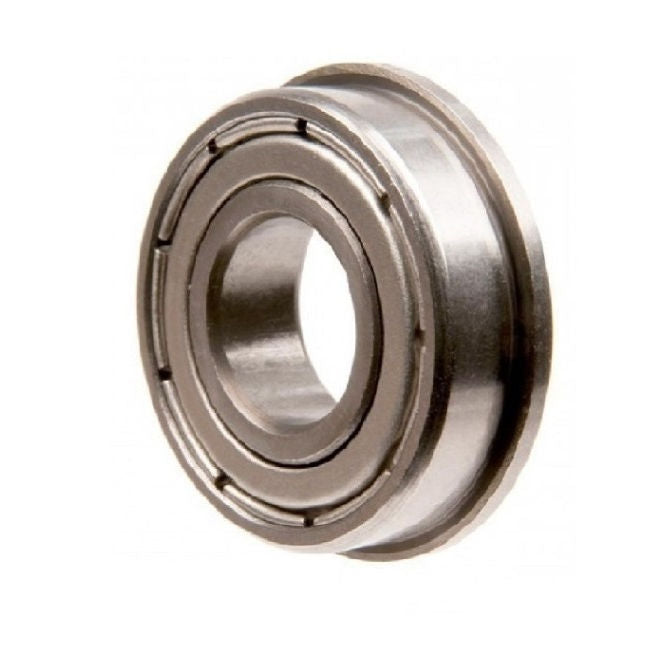

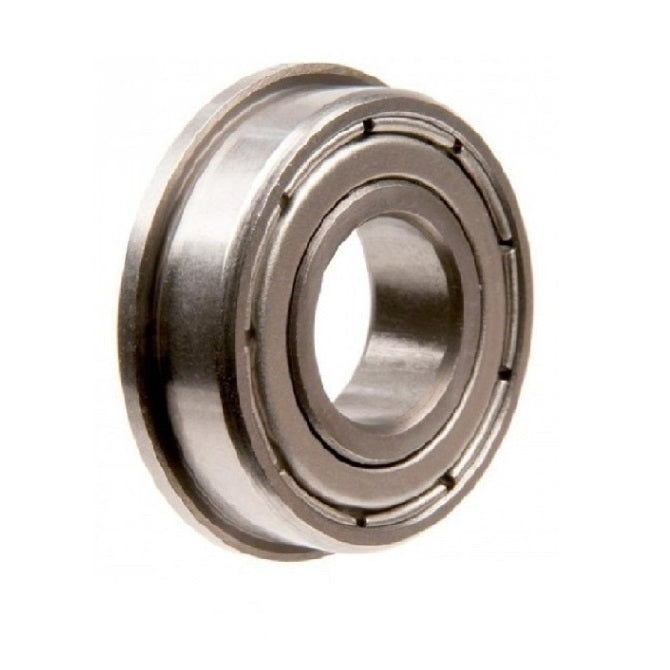

SFR188A-ZZ-MC3Image
