CLP-064-0123-CZ - Datasheet
MBA
Category Information

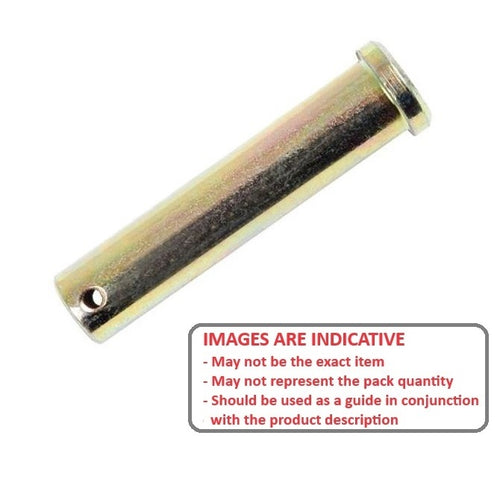

Pins - Clevis - Pin Locking - Zinc PlatedZinc Plated Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Sinc plated low carbon steel
Product Data

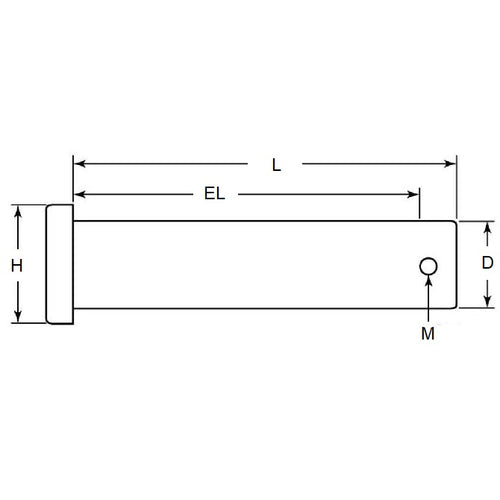

- Nominal Pin Diameter (D)
:
6.35
mm
- 0.05 / - 0.18
(Equiv. 0.25 in.) - Grip Length (EL)
12.30
mm
+ 0.51 / - 0.00
(Equiv. 0.484 in.) - Nom. Length (L)
15.88
mm
+ 0.51 / - 0.00
(Equiv. 0.625 in.) - Ret. Pin Dia. (M) 2.4 mm
- Suitable R-Clip RCL-020-057-Z
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97245A231
- NoCor CLP-0250-0625
- NoCor CLPZ-0250-0625
- NoCor CLPZ-0250-0625/B
- CLPZ02500625
- CLPZ02500625/B
- CLP02500625
- CLP0640123Z
