BL-00635-NY - Datasheet
MBA
Category Information

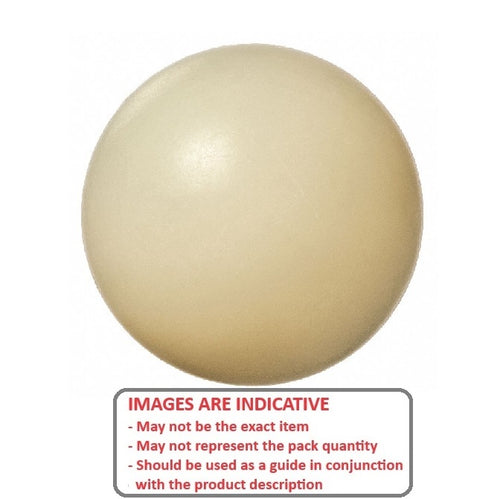

Balls - Plastic - NylonNylon Plastic Balls. Resists alkalies, weak acids and most organic solvents. Low water absorption
- Plastic ball grades are not the same as those for precision balls
- Nylon (Polyamide 6/6).
- Unpolished
- Specific Gravity: 1.14.
Product Data

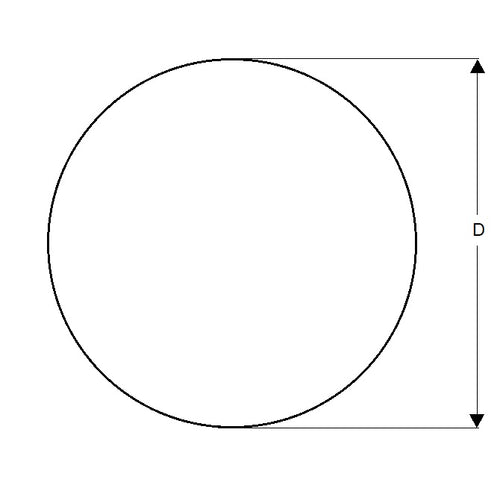

- Diameter (D)
:
6.35
mm
+/- 0.051
(Equiv. 0.25 in.) - Material Nylon (Polyamide 6/6)
- Precision Grade 2
- Hardness 108 Rockwell R
- Properties Resists alkalies, weak acids and most organic solvents.
- Colour Off White
- Specific Gravity 1.14
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 9613K17
- Small Parts BN-4
- BN4
- A9P7108
- A9P71-08
