R168-2RB-ECO - Datasheet
ECO
Category Information

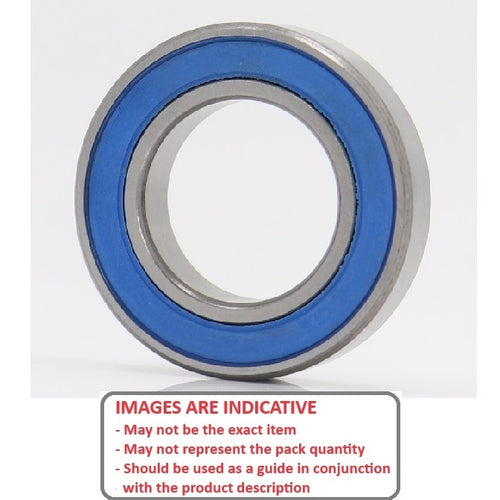

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d) : 6.350 mm
- O.D. (D) 9.525 mm
- Width (B) 3.175 mm
- Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R168
- Limiting Speed 41040
- Cage Type Standard
- Static Load Rating KGf 17.1
- Dynamic Load Rating KGf 36.1
- Radii 0.10 mm
- Inner Shoulder (UI) 7.08mm
- Outer Shoulder (UO) 8.85 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Bolink® - Eliminator - Bearing
- Bolink® - Eliminator 12-CF - Bearing
- Cobra® - Nemesis - Bearing
- Corally® - CCT and RTR - Bearing
- Corally® - SP10 - Bearing
- Corally® - SP12 - Bearing
- Corally® - SR12M and RTR - Bearing
- CRC Calandra Racing Concepts - 3 - Bearing
- CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Bearing
- Duratrax® - Hyper-10 - Bearing
- Duratrax® - RC10T Gas Conversion - Bearing
- Hyperdrive® - 510 - Bearing
- Hyperdrive® - 510 Upgrade - Bearing
- Hyperdrive® - Pan Scale1/10 - Bearing
- Hyperdrive® - STX - Bearing
- Racetech® - Carpet Pro - Bearing
- Schumaker® - Boss Cat - Works Edition - Bearing
- Schumaker® - Cougar Works - Bearing
- Team Associated® - RC10 - T3 1/10 - Ball Bearing for 6374 or 7362 Axles - 6.35x9.525
- Team Associated® - RC10B3 Sport - Bearing
- Team Associated® - RC10GT Old Nitro Off Road - Bearing
- Team Associated® - RC10GT/ST Team Truck - Bearing
- Team Associated® - RC10L3 Oval With Diff Bearing - Bearing
- Team Associated® - RC10L4 Oval - Bearing
- Team Associated® - RC10LSS - Bearing
- Team Associated® - RC10T Truck - Bearing
- Team Associated® - RC10T2 Sport - Bearing
- Team Associated® - RC12LC - Bearing
- Team Associated® - RC12LSS - Bearing
- Team Losi® - JR T Trans - Bearing
- Team Losi® - JRX2 - Bearing
- Team Losi® - JRXT Truck - Bearing
- Team Losi® - LX-T - Bearing
- Team Losi® - Rally Street Upgrade Kit - Bearing
- Team Losi® - Rally Street Weapon - Bearing
- Team Losi® - Street Weapon - Bearing
- Team Losi® - XX - XXCR - XXT CR - Bearing
- Team Losi® - XXX-NT AD Version - Bearing
- Trinity® - Black Widow - Bearing
- Trinity® - Evolution 10 3-16 Axle - Bearing
- Trinity® - Evolution 10 LSS - Bearing
- Trinity® - Reflex 10 - Bearing
- Trinity® - Reflex 12 - Bearing
- Trinity® - Reflex 12 Oval - Bearing
- Trinity® - Revolver 12 - Bearing
- Trinity® - Switchblade 1/8 Axle - Bearing
- Trinity® - Switchblade 12 - Bearing
- Trinity® - Switchblade 12 SJ - Bearing
- Trinity® - Switchblade 2 - Bearing
- Yokomo® - YRX-12WE - Bearing
Cross References
- Associated® 7359 / 7360
- Sealed R168 / 3
- R168 Basic Size Ref
