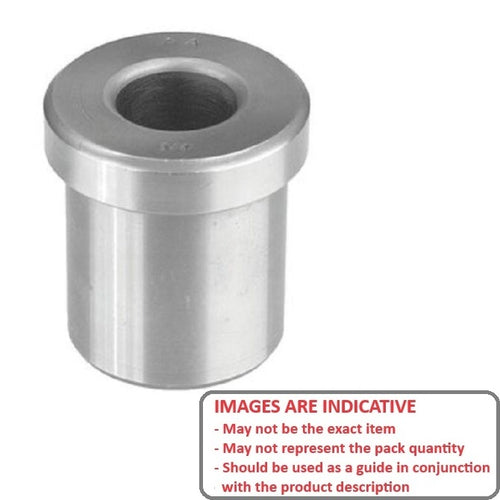

BF0036-0064-0191-DP - Datasheet
MBA
Category Information
Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data

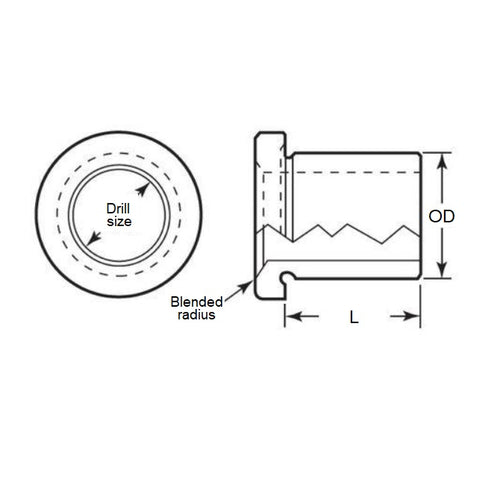

- Outside Diameter (OD)
:
6.350
mm
+ 0.0330 / + 0.0406
(Equiv. 0.25 in.) - Drill Size
3.572
mm
+ 0.0025 / + 0.0102
(Equiv. 0.141 in.) - Length
19.050
mm
(Equiv. 0.75 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- BHT-13150
- BHT13150
