BP0025-0064-0095-DP - Datasheet
MBA
Category Information

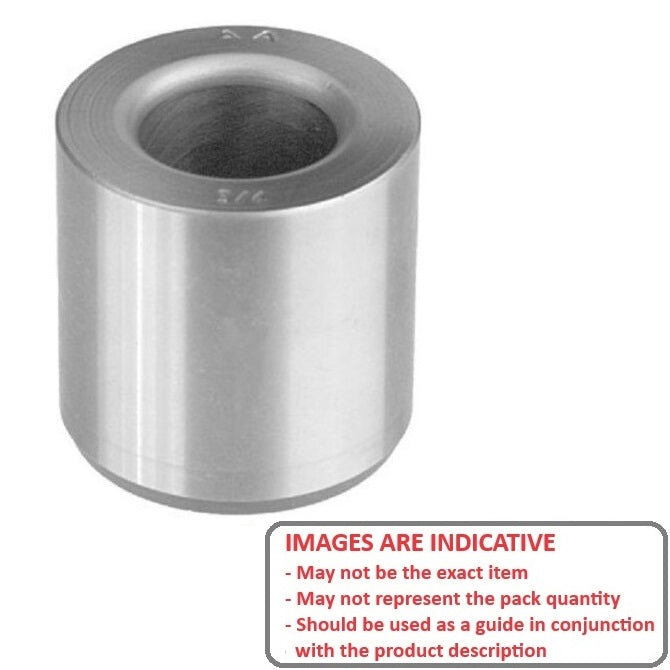

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

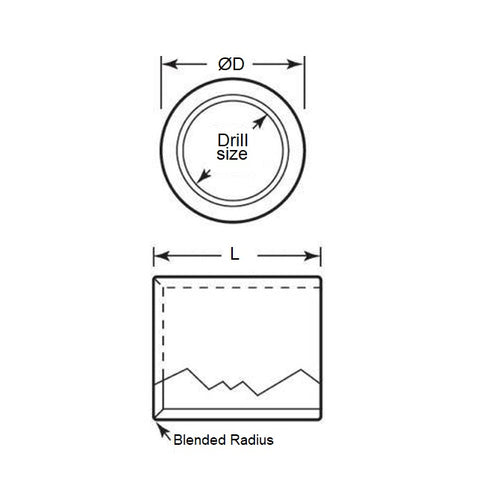

Product Data
- Outside Diameter (OD)
:
6.350
mm
+ 0.003 / + 0.0102
(Equiv. 0.25 in.) - Drill Size
2.489
mm
+ 0.033 / + 0.041
(Equiv. 0.098 in.) - Length
9.525
mm
(Equiv. 0.375 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8491A051
- BP13110
- BP-13110
