COL-00635-013-07-S4 - Datasheet
MBA
Category Information

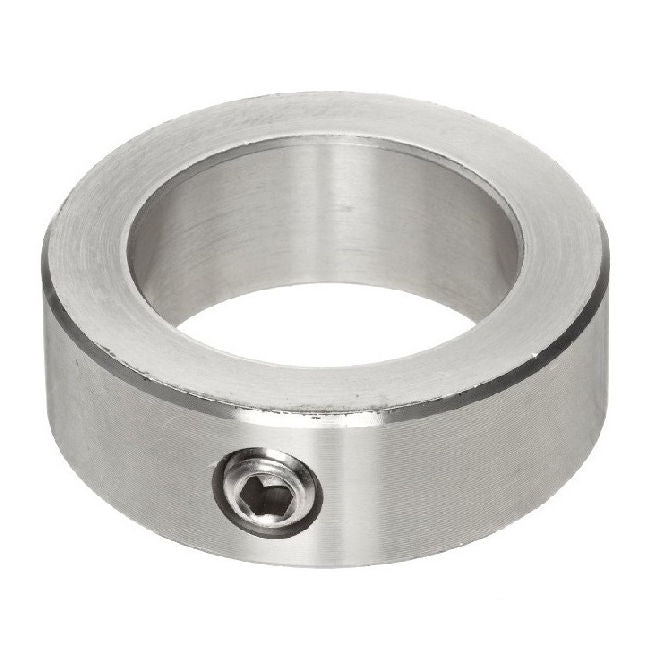

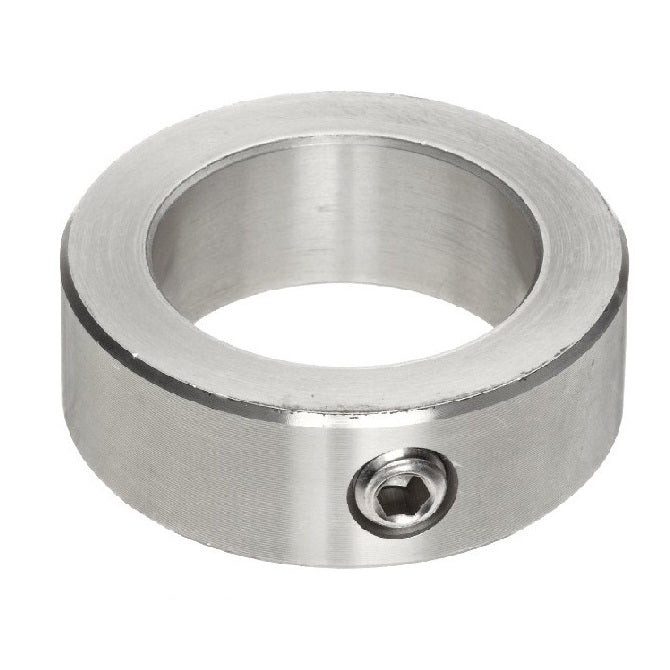

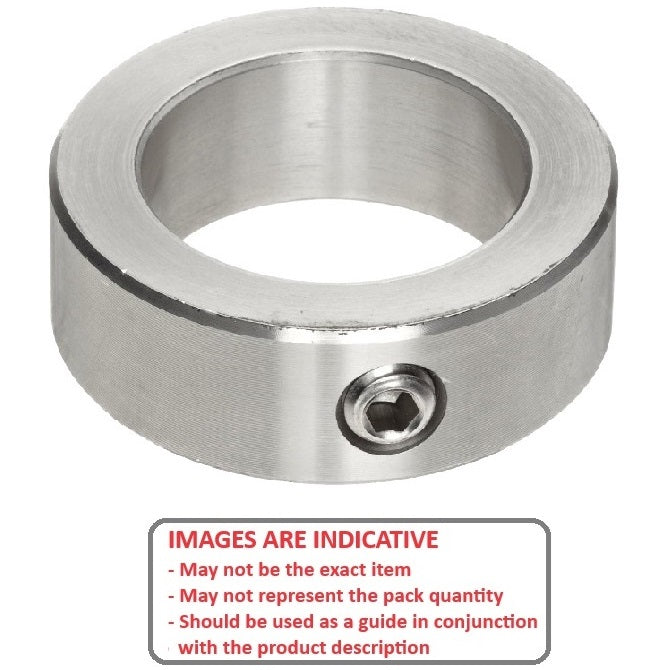

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
6.350
mm
(Equiv. 0.25 in.) - Outside Diameter (D)
12.70
mm
(Equiv. 0.5 in.) - Overall Width (S)
7.1
mm
(Equiv. 0.28 in.) - Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-0250-SS
- SC0250SS
