BFM-250-P - Datasheet
MBA
Category Information

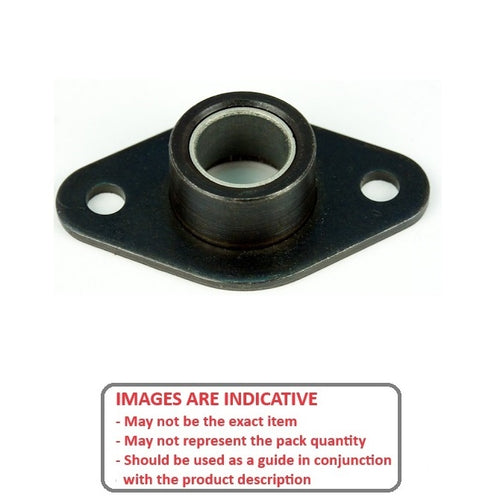

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE BronzePTFE Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted PTFE bronze bearings
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

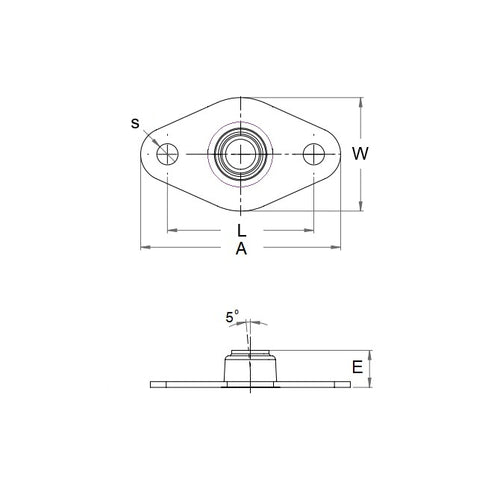

- Nominal Shaft Size
:
6.350
mm
(Equiv. 0.25 in.) - Width (W)
53.34
mm
(Equiv. 2.1 in.) - Overall Length (A)
16.67
mm
(Equiv. 0.656 in.) - Overall Height (E) 30.23 mm
- Min to Max Shaft Dia. 6.299 to 6.325 mm
- Max. Radial Dynamic Load 7562 N
- Bolt Hole Centres (L) 38.86 mm
- Max Speed 6020
- Material PTFE Impregnated Bronze
Product Compliance and Data
Additional Resources
Cross References
- 2820T33
