CP-064-064-25-0203-FS - Datasheet
MBA
Category Information

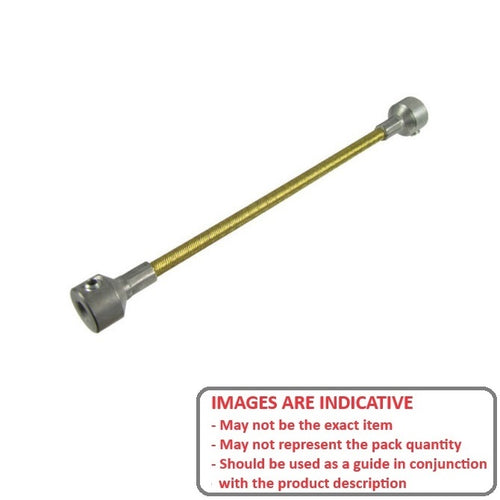

Flexible Shafts - Coupling Ends - Open - Mild SteelMild Steel Open Coupling Ends Flexible Shafts. Flexible shafting with coupling ends ready to attach to a fixed shaft.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- 1.7 and 2.5mm cable diameters can be operated manually at 62mm bend radius with torsional break strength of 0.62 N.m
- 3.3F shaft has a greater degree of flexibility than standard 3.3mm
- 3.3F shaft can be used in dynamic mode if shaft isshortened to approximately 50mm
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

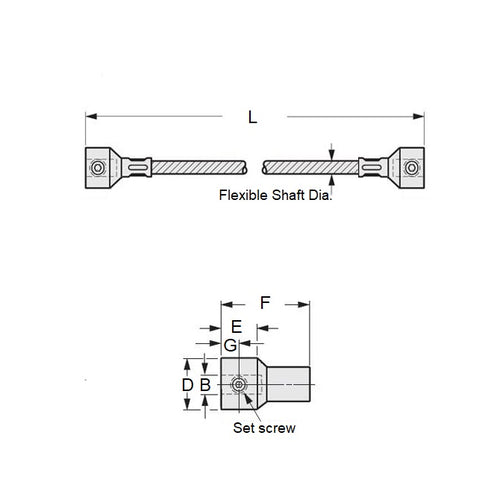

- Bore Size (B)
:
6.350
mm
+ 0.05 / - 0.00
(Equiv. 0.25 in.) - Bore Size (B)
6.350
mm
+ 0.05 / - 0.00
(Equiv. 0.25 in.) - Length (L)
203.2
mm
(Equiv. 8 in.) - Flexible Cable Diameter 2.50 mm
- Coupling End OD (D) 12.7 mm
- Bore Depth (E) 8.7 mm
- Coupling End Length (F) 20.6 mm
- Grub Screw Centre (G) 4.8 mm
- Grub Screw Size 8-32 UNC (4.17mm)
- Shaft Material Steel
- End Material Plated Steel
- Material Plated Steel with Vinyl Cover
Product Compliance and Data
Additional Resources
Cross References
- A 7C12-08333
- A7C1208333
- A7C12-08333
