REM-064-R-CB - Datasheet
MBA
Category Information

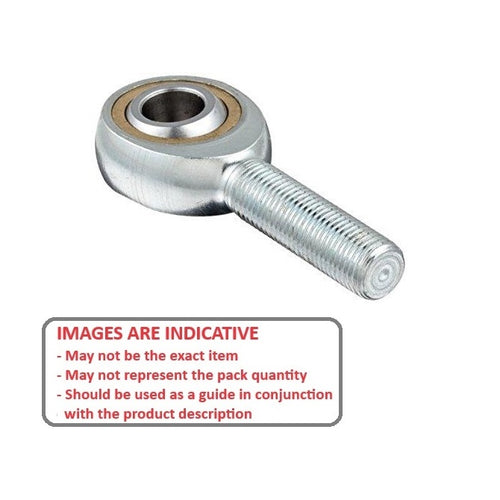

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
6.35
mm
(Equiv. 0.25 in.) - Overall Length (L)
49.20
mm
(Equiv. 1.937 in.) - Thread Size 1/4-28 UNF Right
- Min. Thread Length (l2) 25.40 mm
- Head Width (W) 7.14 mm
- Eye Width (W1) 9.53 mm
- Head Diameter (D) 19.05 mm
- Centre Height (l1) 39.67 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K62-RIGHT
- ASAHI JAMB4
- KWK KMB4
- IKO POSB4
- Nachi POSB-4
- NTN SMI-B4
- SMIB4
- 6072K62RIGHT
