BFM-250-A - Datasheet
MBA
Category Information

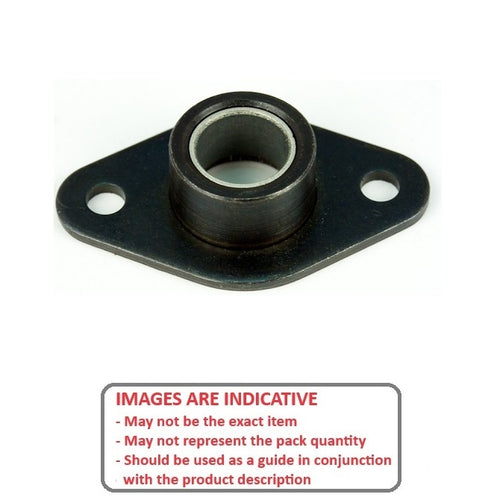

Housing and Bearing Assembly - Flanged 2 Bolt - Self Aligning - PlasticPlastic Self Aligning Flanged 2 Bolt Housing Assembly. This is the main category in this series
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
6.350
mm

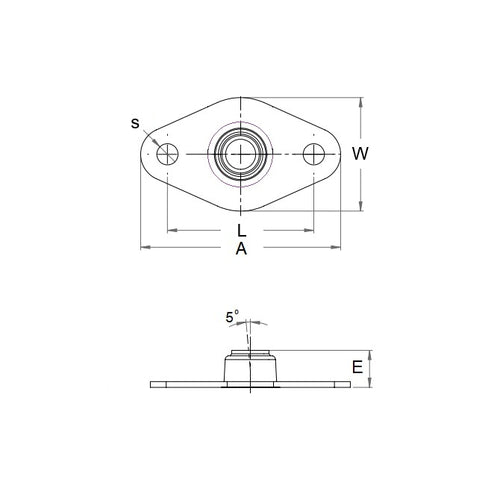

(Equiv. 0.25 in.) - Width (W)
45.72
mm
(Equiv. 1.8 in.) - Overall Length (A)
10.32
mm
(Equiv. 0.406 in.) - Overall Height (E) 22.10 mm
- Min to Max Shaft Dia. 6.375 to 6.426 mm
- Max. Radial Dynamic Load 311 N
- Bolt Hole Centres (L) 30.73 mm
- Max Speed 1520
- Material Acetal
