CGS-0635-R2C-3 - Datasheet
MBA
Category Information

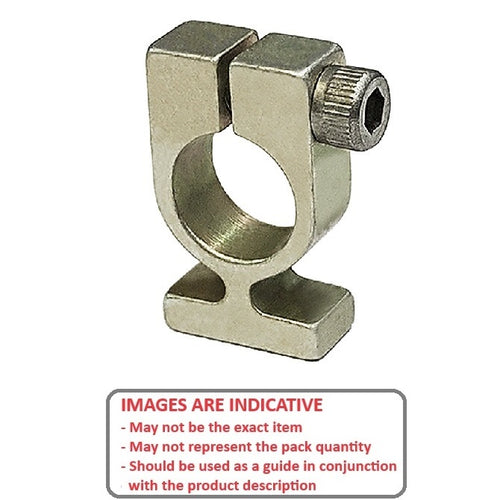

Clamps - Gear - SplitSplit Gear Clamps. Commercial - Precision - Stainless - Aluminium - Carbon Steel - For clamp type gears.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Precision Type : Height and Clearance Radii Tolerances +/- 0.397.
- Precision Type : All other dimensional tolerances except ID +/-0.127.
- Commercial Type : Height and Clearance Radii Tolerances +/- 0.794.
- Commercial Type : All other dimensional tolerances except ID +/-0.254.
- ID Tolerances - Refer to table.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

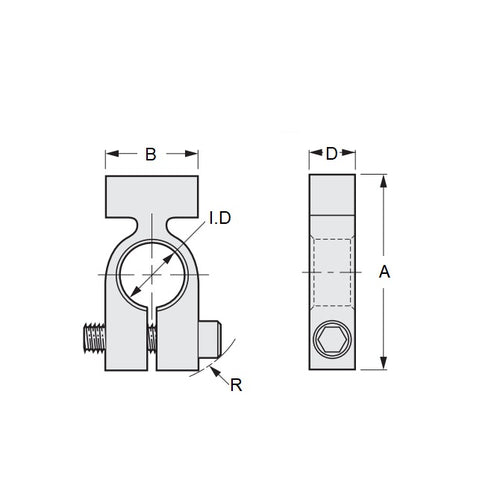

- Inside Diameter (ID)
:
6.350
mm
+0.051 / - 0.000
(Equiv. 0.25 in.) - Clearance Radius
12.700
mm
(Equiv. 0.5 in.) - Depth (t)
6.350
mm
(Equiv. 0.25 in.) - Type Rectangular - Type 2
- Grade Commercial / Balanced
- Screw Size 6-32 mm
- Height 20.241 mm
- Width (B) 9.525 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S3300YJ089
- S3300Y-J089
