WRT00RS - Datasheet
MBA
Category Information

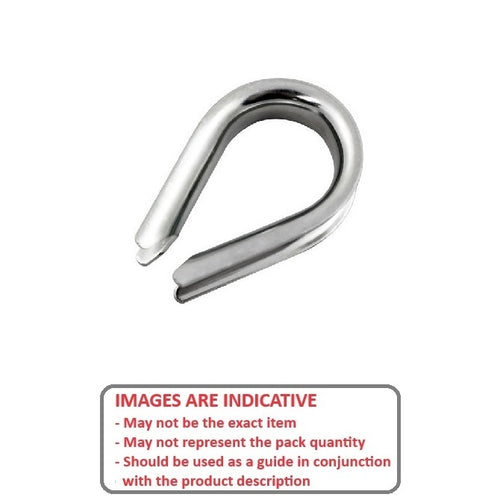

Cable Attachments - Thimbles - SteelSteel Thimbles Cable Attachments. Hot galvanised carbon steel. Use with synchromesh or standard miniature cable
- U-shaped metal insert used to reinforce the eye (loop) of a wire rope or cable, preventing damage from abrasion and friction.
- Protects the cable by maintaining its shape under tension, ensuring a stronger and more durable connection when secured with clips or ferrules.
- Made from durable materials like steel or stainless steel and are common in industrial, marine, and rigging applications.
- Meets USA Fed. Spec. FF-T-276b for Type III thimbles.
Product Data
- Suitable cable diameter
:
6.35
mm

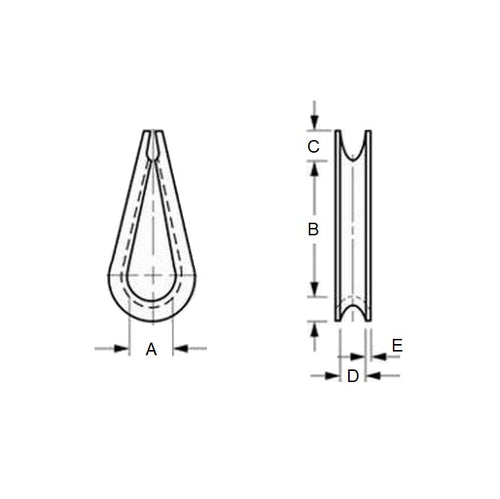

(Equiv. 0.25 in.) - OAL (B+C+F)
47.625
mm
(Equiv. 1.875 in.) - Inside Width (A)
17.463
mm
(Equiv. 0.688 in.) - Material Hot galvanized steel
Product Compliance and Data
Additional Resources
Cross References
- WRT00
- WRT-00
