BLP-064-0127-THR-S3 - Datasheet
MBA
Category Information

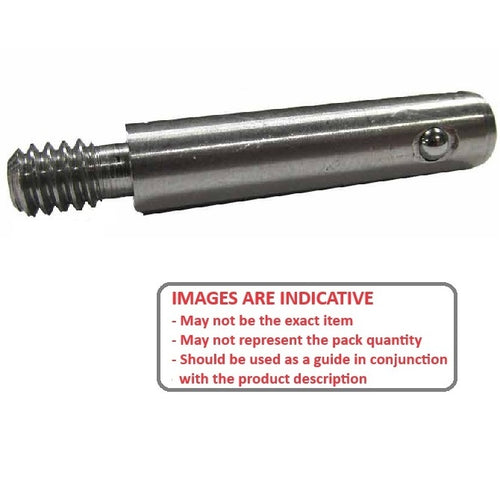

Pins - Ball Lock - Threaded End Stainless SteelThreaded End Stainless Steel Ball Lock Pins. One end threaded so you can attach your own handle or knob. 303 Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

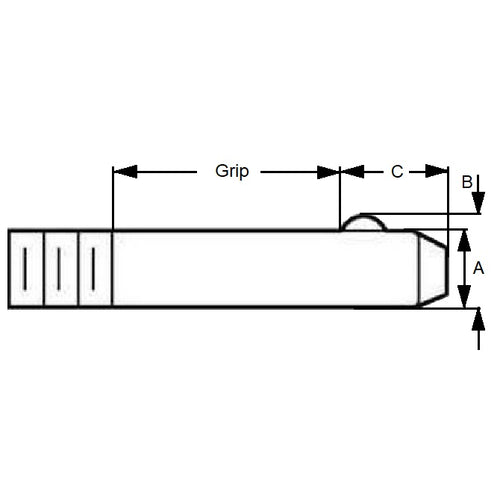

- Nominal Diameter (A) : 6.35 mm
- Grip Length (B) 12.70 mm
- Pin Material Grade 303 Stainless Steel
- Thread Size 1/4-20 UNC (6.35mm)
- Thread Length 9.53 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® FPU-30
- FPU30
