PLST-035C-095-C-016-A - Datasheet
MBA
Category Information

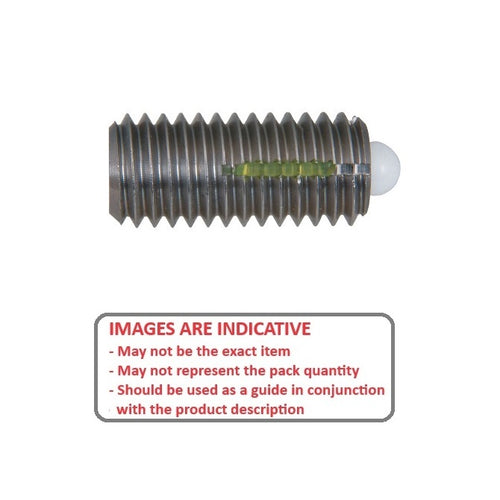

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

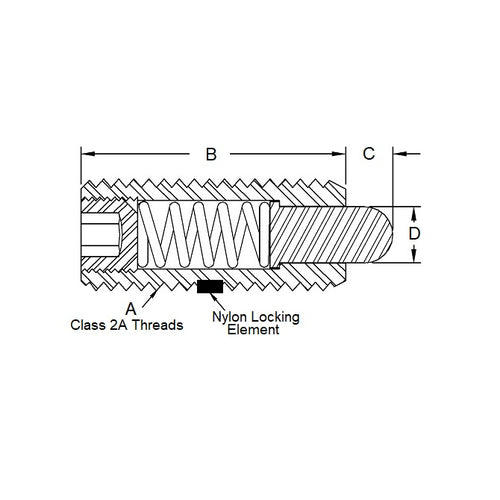

- Thread Size (A) : 6-32 UNC (3.5mm)
- Thread Length (B)
9.5
mm
(Equiv. 0.374 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 15.6 N
- Tip Diameter (D) 1.2 mm
- Tip Length (C) 1.6 mm
- Body Length (B) 9.5 mm
- Drive Slotted
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- PLST035C095AC016
- JP5
- JP-5
