PLBT-035C-071-CLK-003 - Datasheet
MBA
Category Information

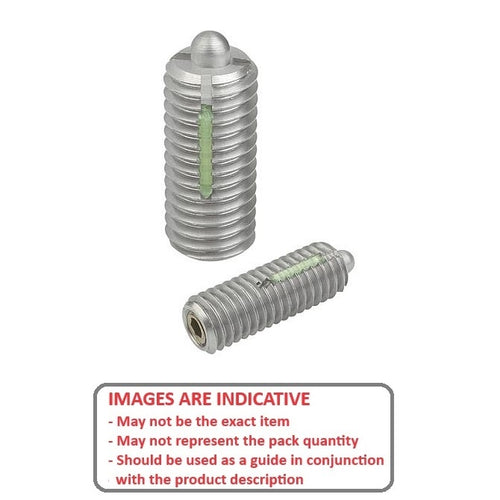

Plungers - Ball Threaded - Steel Body and Ball with ThreadlockSteel Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : 6-32 UNC (3.5mm)
- Body Length (L)
7.1
mm
(Equiv. 0.28 in.) - Initial Pressure (F1) 1.5 N
- Final Pressure (F2) 3.0 N
- Ball Diameter (D1) 1.5 mm
- Ball Height (H) 0.5 mm
- Drive Slotted
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-203
- KBP203
