NT035C-TH1206-S3 - Datasheet

MBA

Product Data

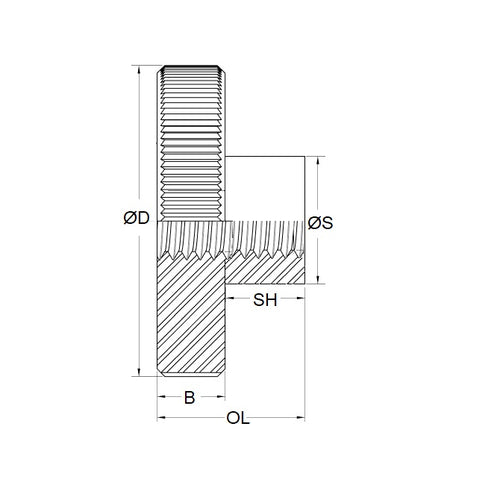

• Thread Size : 6-32 UNC (3.5mm)
• Overall Length 9.5 mm
  (Equiv. 0.374 in.)
• Head Width (B) 3.18 mm
  (Equiv. 0.125 in.)
• Head Diameter 12.70 mm
• Shoulder Diameter 6.35 mm
• Shoulder Height 6.35 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91833A116
• SKN15
• SKN-15
