SK035C-006-PH-CZ - Datasheet
MBA
Category Information

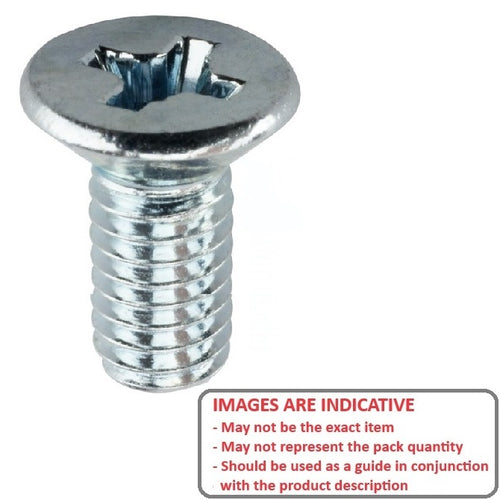

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 6-32 UNC (3.5mm)
- Overall Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Zinc Plated Steel
- Max Head Diameter (A) 6.65 mm
- Max Head Height 2.5 mm
- Type Countersunk / Philips
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90273A144
- Hitech MSCPZP63214
