SK035C-006-PH-BO - Datasheet

MBA

Category Information

Screws - Countersunk - Phillips - Steel

Steel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size (C) : 6-32 UNC (3.5mm)
  • Overall Length (L) 6.4 mm
    (Equiv. 0.252 in.)
  • Material Black Oxide Steel
  • Max Head Diameter (A) 6.65 mm
  • Max Head Height 2.5 mm
  • Type Countersunk / Philips
  • Pitch 0.794 mm
  • Threads Per Inch 32 TPI
  • Material Black Oxide Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • MicroFast FCMPK0604
View full details

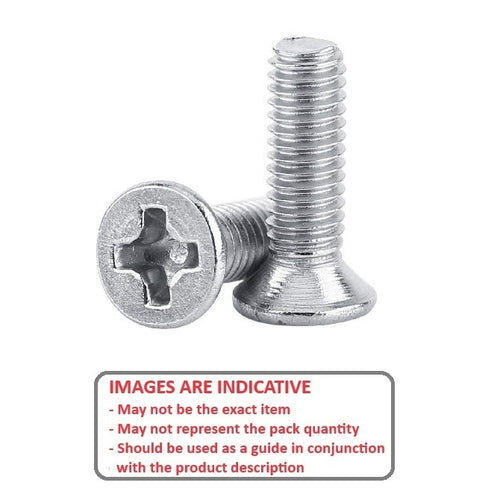

SK035C-006-PH-BODiagramSK035C-006-PH-BOImage
