NT035C-HXT-NY - Datasheet
MBA
Category Information

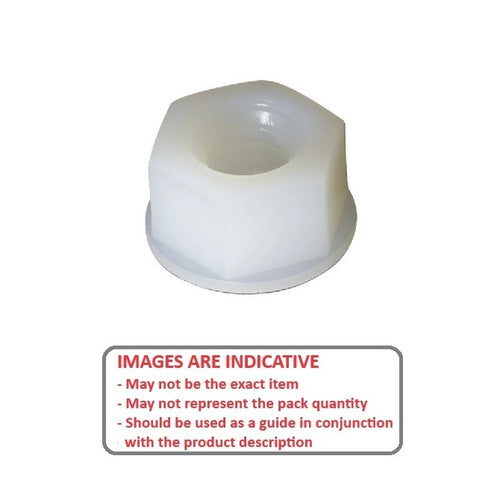

Nuts - Hexagonal - Full - Nylon - Self TappingSelf Tapping Nylon Full Hexagonal Nuts. Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- An expanded range may be available on special order. Please enquire.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 6-32 UNC (3.5mm)

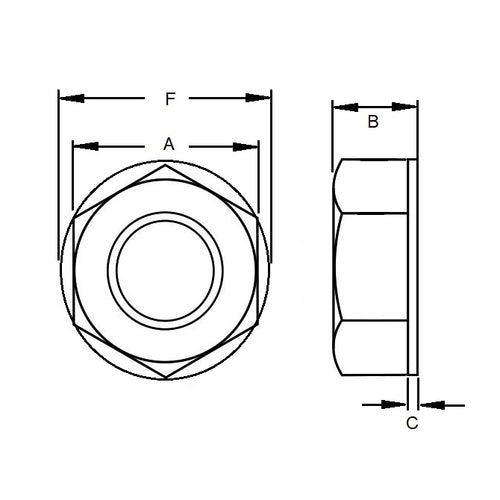

- Thickness (H)
5.08
mm
(Equiv. 0.2 in.) - Across Flats (A/F)
7.75
mm
(Equiv. 0.305 in.) - Round Base Diameter (F) 8.89 mm
- Type Self Tapping Hex Nut
- Base Thickness ( C ) 0.381 mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- A9M640632
- A9M64-0632
- A 9M64-0632
