SS035C-0048-AS-CP - Datasheet
MBA
Category Information

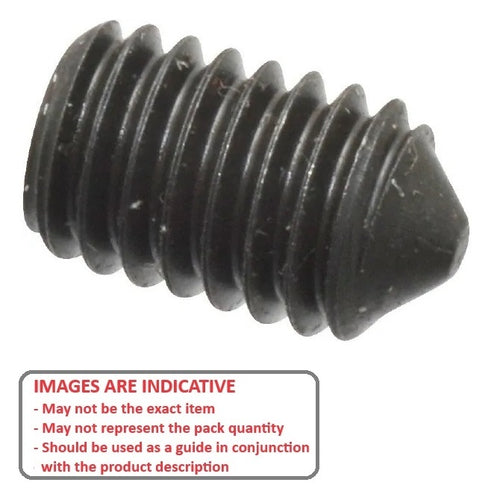

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.
Product Data

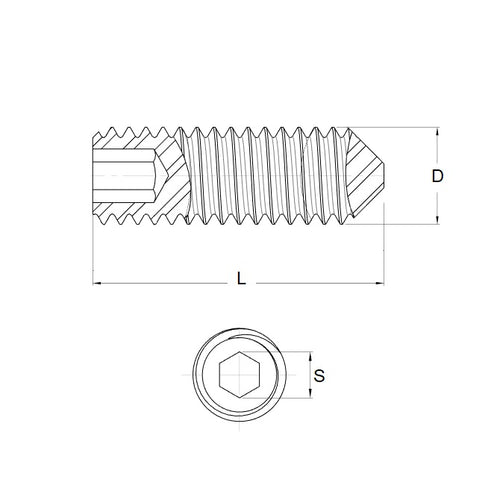

- Thread Size : 6-32 UNC (3.5mm)
- Thread Length (L)
4.8
mm
(Equiv. 0.189 in.) - Type Cone Point
- Hex Key Size 1.59 (1/16)
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92695A131
- BRB121019P
- BRB-121019P
