PLST-035C-127-S3HX-007 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Stainless - Hex Nose

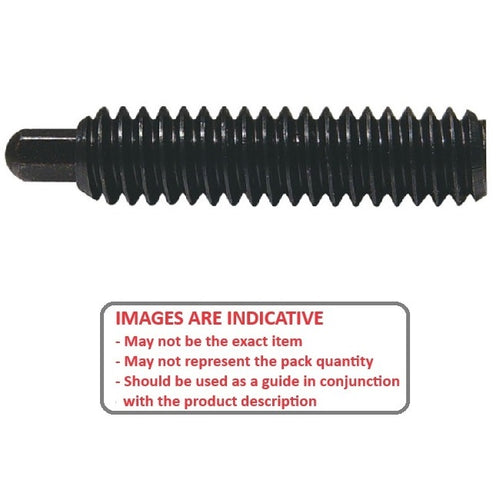

Hex Nose Stainless No Handle Spring Plungers. Stainless Steel body and steel hex nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

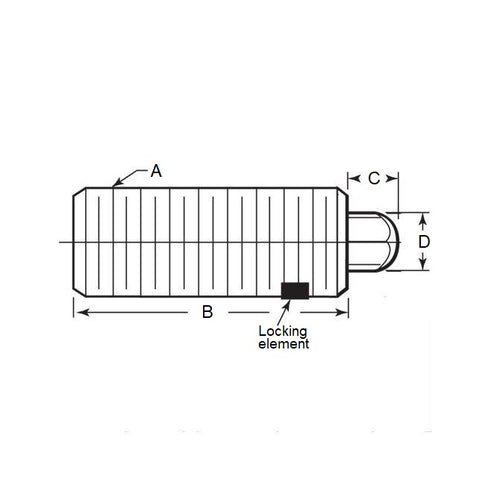

Product Data

  • Thread Size (A) : 6-32 UNC (3.5mm)
  • Thread Length (B) 12.7 mm
    (Equiv. 0.5 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 7.1 N
  • Tip Diameter (D) 1.1 mm
  • Tip Length (C) 1.6 mm
  • Body Length (B) 12.7 mm
  • Drive 1.27mm Hex
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST035C127S3007
  • SSPH-48B
  • SSPH48B
