PLST-035C-135-S3HX-007A - Datasheet

MBA

Category Information

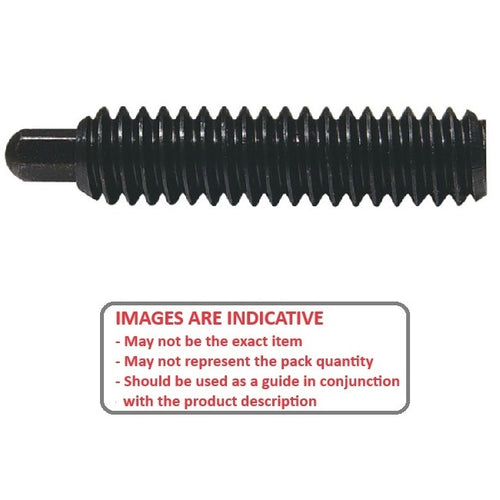

Plungers - Spring - No Handle - Stainless - Hex Nose

Hex Nose Stainless No Handle Spring Plungers. Stainless Steel body and steel hex nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

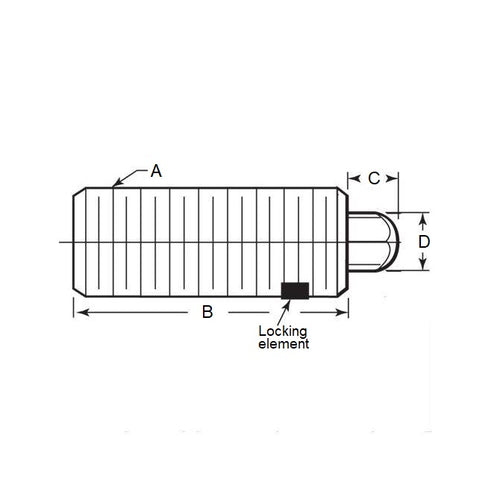

  • Thread Size (A) : 6-32 UNC (3.5mm)
  • Thread Length (B) 13.5 mm
    (Equiv. 0.531 in.)
  • Initial Pressure (F1) 2.2 N
  • Final Pressure (F2) 6.7 N
  • Tip Diameter (D) 1.1 mm
  • Tip Length (C) 1.6 mm
  • Body Length (B) 13.5 mm
  • Drive 1.27mm Hex
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST035C135S3007A
  • SSPH49
  • SSPH-49
