SK035C-016-SL-S4 - Datasheet
MBA
Category Information

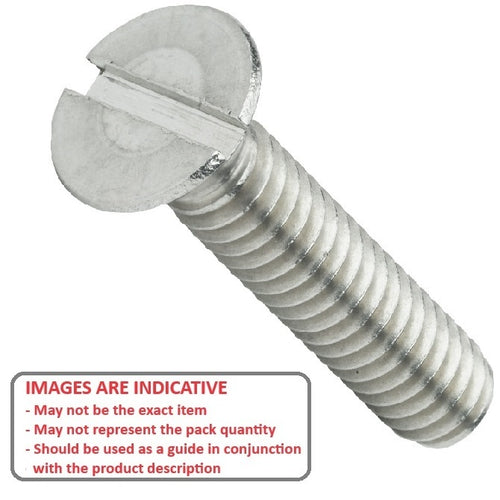

Screws - Countersunk - Slotted - 304 Stainless304 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 6-32 UNC (3.5mm)
- Overall Length (L)
15.9
mm
(Equiv. 0.626 in.) - Material 304 Stainless
- Max Head Diameter (A) 6.65 mm
- Max Head Height 2.11 mm
- Type Countersunk / Slotted
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91781A150
- Small Parts MX-632-10F
- A9X16-F063210
- A9X16F063210
- A 9X16-F063210
- MX63210F
