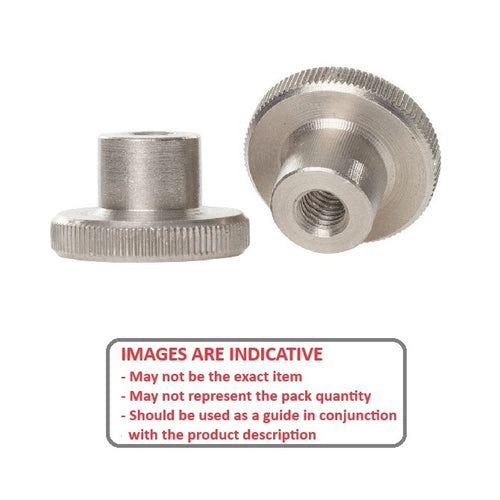

NT035C-TH1912-S3 - Datasheet

MBA

Product Data

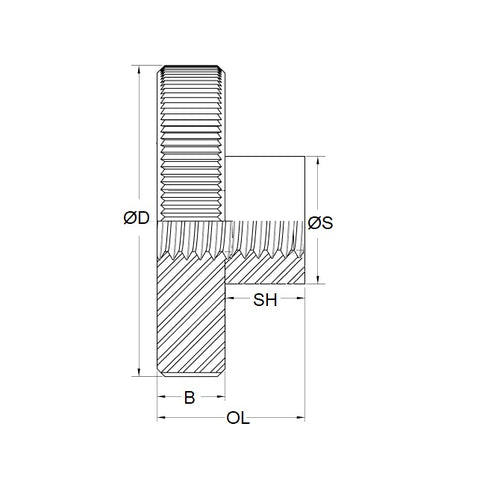

• Thread Size : 6-32 UNC (3.5mm)
• Overall Length 15.9 mm
  (Equiv. 0.626 in.)
• Head Width (B) 3.18 mm
  (Equiv. 0.125 in.)
• Head Diameter 19.05 mm
• Shoulder Diameter 6.35 mm
• Shoulder Height 12.70 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
