CC-063-071-C - Datasheet
MBA
Category Information

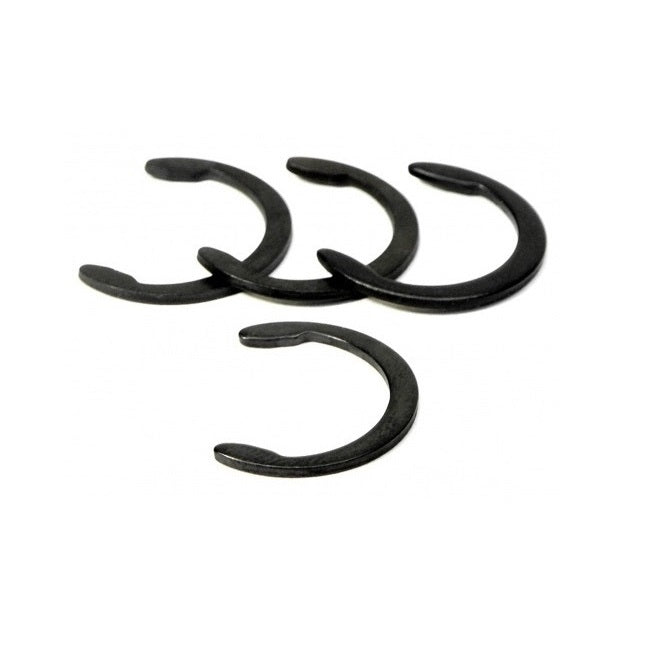

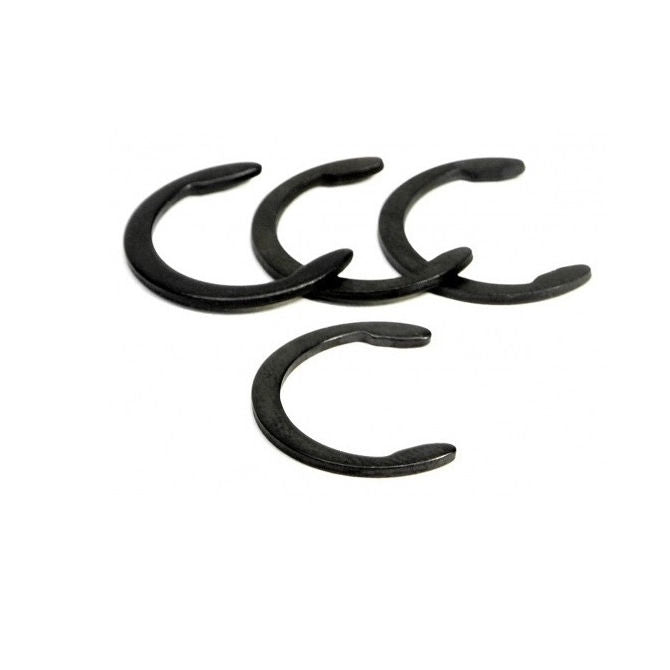

Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.

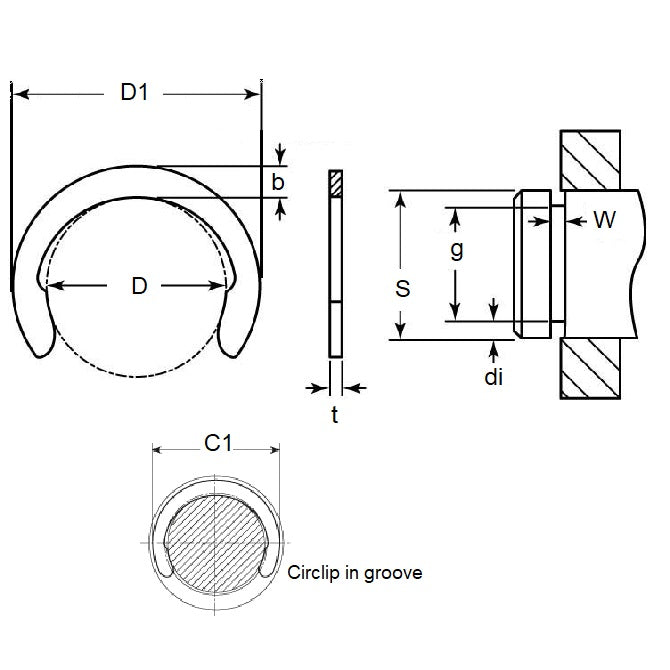

Product Data
- Groove Diameter (G) : 6.27 mm
- Shaft Diameter (S) 7.14 mm
- Thickness (t) 0.64 mm
- Clip OD in groove (C1) 9.14 mm
- Clip OD Loose (D1) 8.79 mm
- Groove Width (W) 0.74
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Military 16632-028
- Military 16632-028/B
- Military 16632-028-B
- Waldes® 5103-028
- Waldes® 5103-028/B
- Waldes® 5103-028-B
- Ellison® 9103-028
- Ellison® 9103-028/B
- Ellison® 9103-028-B
- 97414A630
- NoCor® C-028
- Rotor Clip® C-028
- Huyett® C-028/B
- NoCor® C-028/B
- Rotor Clip® C-028/B
- NoCor® C-028-B
- Rotor Clip® C-028-B
- C028B
- C028/B
- N18000028APP
- N1800-0028APP
- N1800028
- N1800-028
- N1800028/B
- N1800-028/B
- N1800028B
- N1800-028-B
- 16632028/B
- 16632028B
- 9103028/B
- 9103028B
- 5103028
- 5103028/B
- 5103028B
