CS-0610-0191-10-S2-G - Datasheet
MBA
Category Information

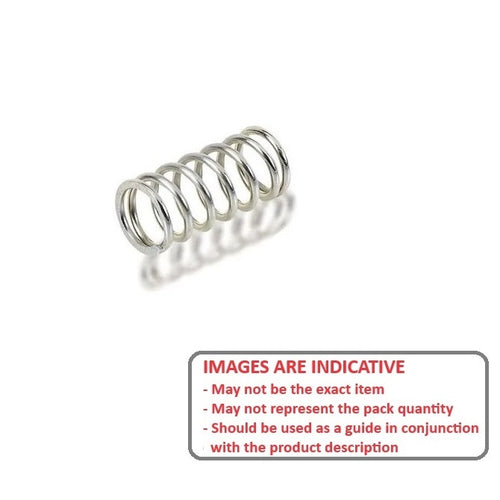

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data

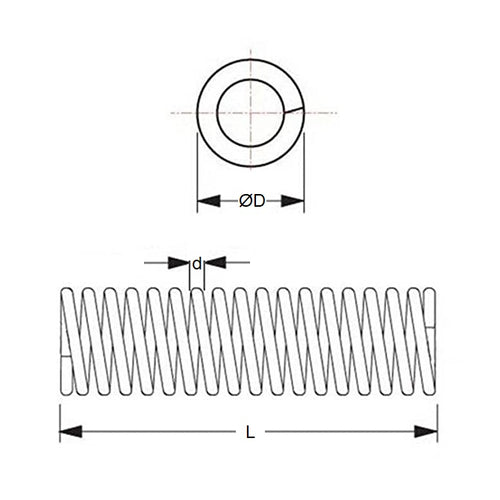

- Spring OD (D0)
:
6.10
mm
+/- 0.127
(Equiv. 0.24 in.) - Free Length (L0)
19.1
mm
+/- 0.64
(Equiv. 0.752 in.) - Wire Diameter (d)
0.97
mm
+/- 0.015
(Equiv. 0.038 in.) - Loaded Height (L1) 12.95 mm
- Load at L1 40.29 N
- Rate (P/f) 7.0 N/mm
- Solid Height (Sh) 10.338 mm
- Approx. ID 4.2 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 3.86 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 9435K45
- S78CSY-024038075
- S78CSY024038075
