PFL-030H-010-C - Datasheet
MBA
Category Information

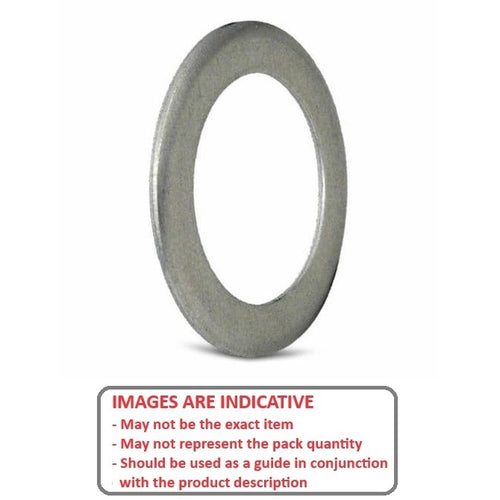

Pulley Flanges - Timing - Suit 3.000mm HTD Series - Carbon SteelCarbon Steel Suit 3.000mm HTD Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data

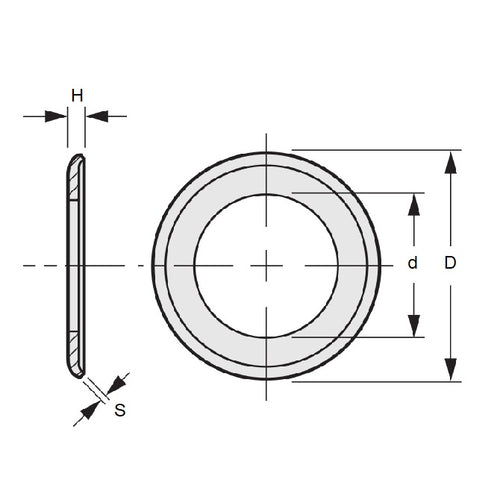

- Inside Diameter (d)
:
6.198
mm
(Equiv. 0.244 in.) - Outside Diameter (D)
12.80
mm
(Equiv. 0.504 in.) - Suits Pulley Grooves 10 No.
- Width (H) 1.14 mm
- Thickness (S) 0.64 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 10-3M-FS
- 103MFS
- A6C22M010FS
