Miniature Bearings Australia

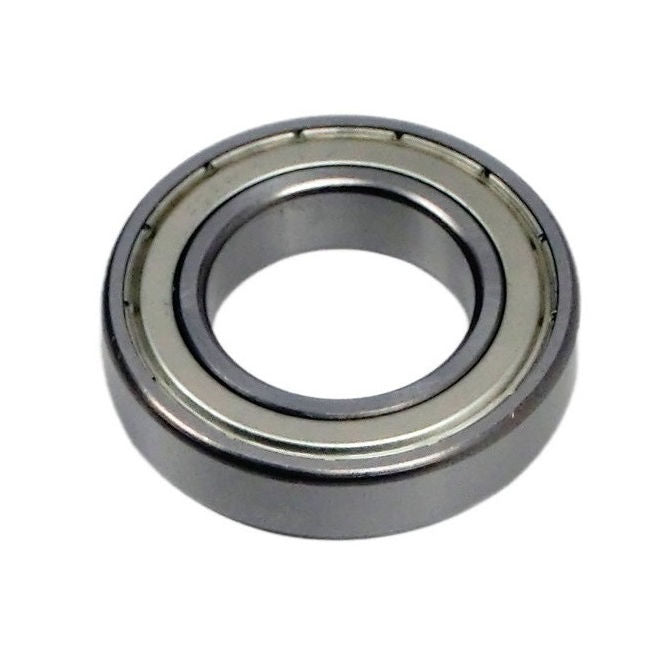

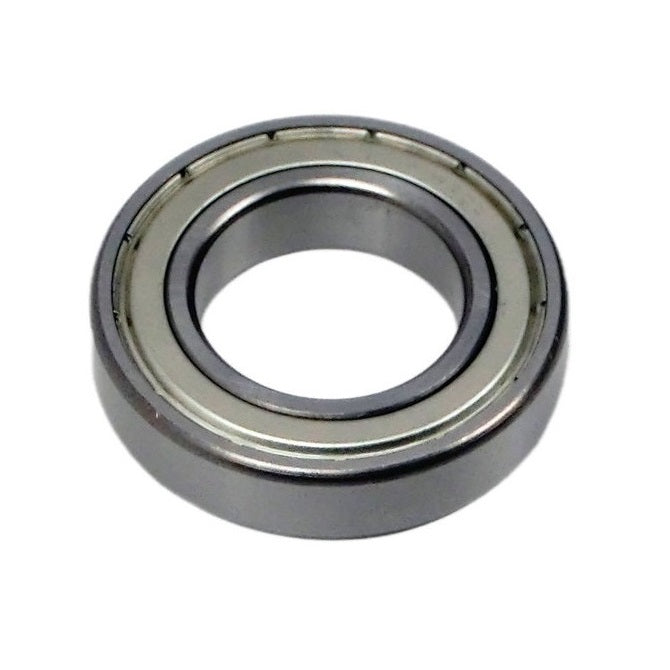

S606-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - OD (D)
17.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.669 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 606
- Limiting Speed 38000
- Cage Type Ribbon
- Static Load Rating KGf 86
- Dynamic Load Rating KGf 231
- Radii 0.30 mm
- Inner Shoulder (UI) 8.20mm
- Outer Shoulder (UO) 14.80 mm
- Number of Balls 6
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Century - Ninja Pro 30/46 All - Bearing
Cross References
- ISO 606HZZ
- ISO 606H-ZZ
- Stainless 606ZZMC3
- Stainless 606-ZZ-MC3
- SS-R1760-ZZ
- SSR1760-ZZ
- SSR1760ZZ
- DDR1760ZZ
- DD-R1760-ZZ
- DDR1760-ZZ
- S606ZZMC3
- S606-ZZMC3
- 606 Basic Size Ref
