HXN6-10 - Datasheet

MBA

Category Information

Magnets - Cylinder - Boron

Boron Cylinder Magnets. This is the main category in this series

    Product Data

    • Diameter : 6.00 mm
      (Equiv. 0.236 in.)
    • Length (A) 10.0 mm
      (Equiv. 0.394 in.)
    • Surface Treatment Nickel Plating
    • Attraction Force 11.84 N
    • Heat resistant Temp 80.00 Deg C
    • Material Neodymium Iron Boron
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Misumi HXN6-10
      • HXN610
      View full details

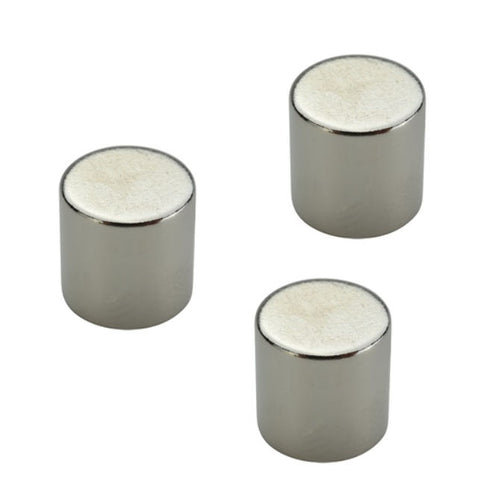

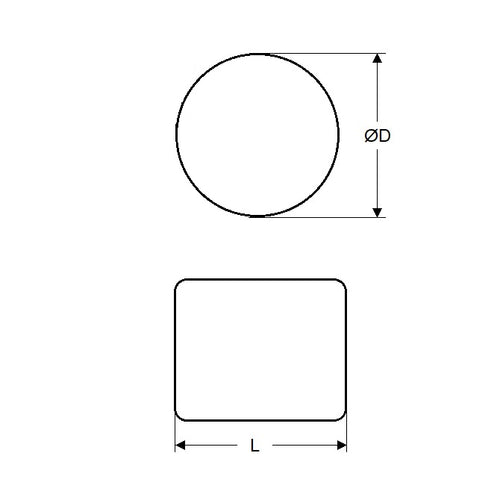

      HXN6-10DiagramHXN6-10Image
